Scribe-Master DGPRO Multi-Plate Drainer Groove Jig- With 2 Templates | XY-Axis Router Carriage | 0.5° Fall | Anti-Bow Flex-Tech | CNC HPL | For Timber, Laminate & Solid Surfaces | UK Patented

DGPRO: The Ultimate Drainer Groove Jig with Multi-Plate Versatility

Take full control of your worktop draining grooves with the Scribe-Master DGPRO Multi-Plate Jig€”the most versatile, accurate, and professional-grade drainer system on the market.

The DGPRO is equipped with a smooth-sliding XY-axis router carriage that allows you to route straight grooves or tapered slopes with absolute precision. Built-in 0.5° fall ensures water drains properly every time, and Anti-Bow Flex-Tech Technology keeps the jig stable under load€”eliminating dishing and distortion, even with heavy routers.

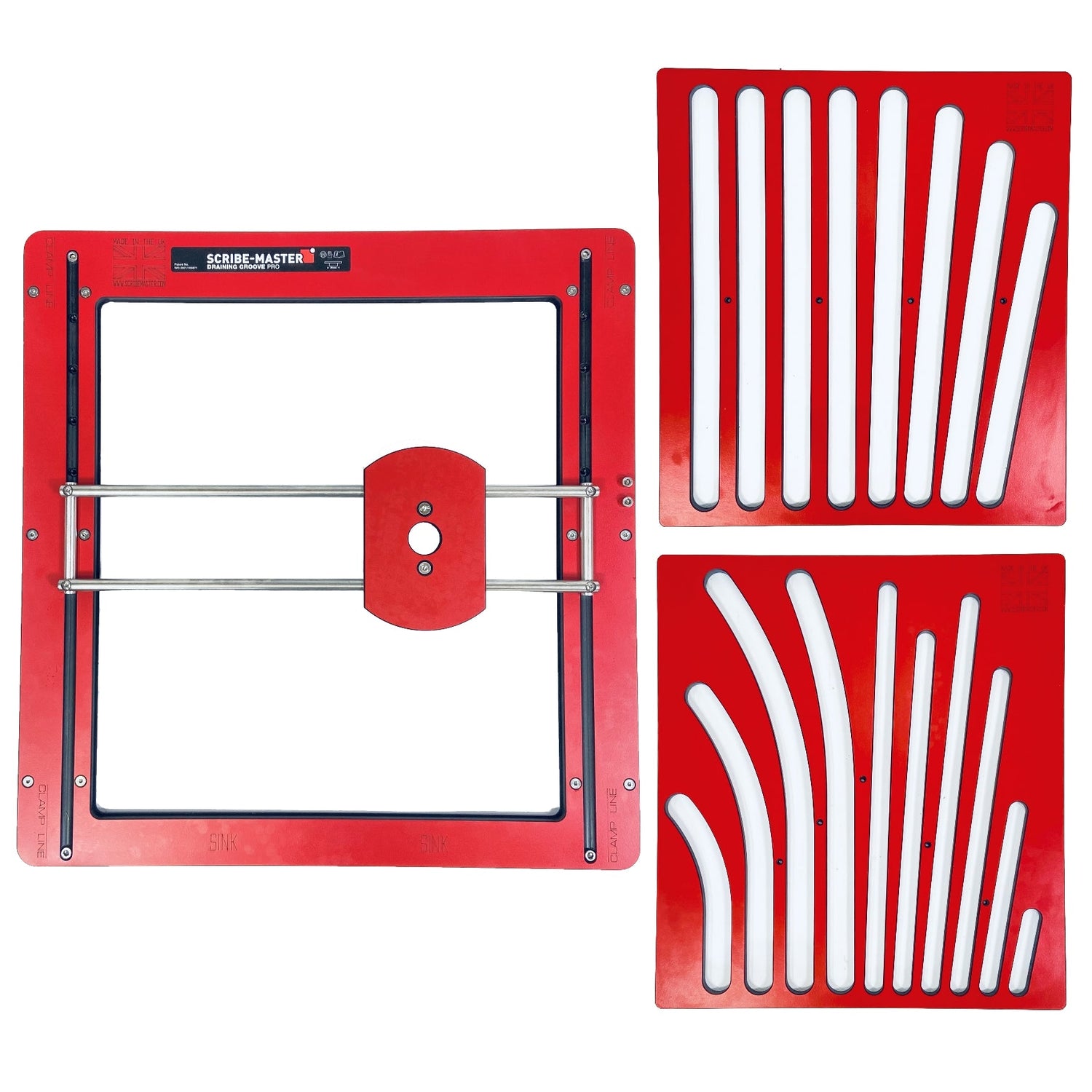

This kit includes 2 insert templates€”Straight/Fan and Curved/Lightning Fan€”so you can craft a wide range of groove styles, including hot rod recesses. Need to check your work? The templates can be removed and repositioned without realignment.

📦 WHAT'S INCLUDED:

• 1 × DGPRO Outer Frame

• 1 × XY-Axis Router Carriage

• 2 × Index Pins

• 2 × Templates:

  • 🔹 Straight & Straight Fan

  • 🔹 Curved Fan & Lightning Fan

REQUIRED (Not Included):

• ½" Plunge Router (min. 1300W)

• 30mm Guide Bush

• 19mm Straight Cutter or Cove Cutter (R9.5mm)

• Optional: Trend Unibase for router compatibility

📄 Download Instruction Manual (PDF)

Which Draining Groove do you need ? (Watch the video)

🚀 WHY PROFESSIONALS LOVE THE DGPRO

Whether you're cutting flat-bottom drainers or complex curved fans, the DGPRO delivers unmatched speed, precision, and repeatability. Use it freehand with the carriage or drop in a template for controlled design routing€”it's everything you need in one jig.

œ” Perfect for inset hot rods
œ” Carriage or template operation
œ” No need for realignment when removing templates
œ” Ideal for high-end kitchens and solid surface worktops

🌍 MADE IN THE UK, BUILT FOR PRECISION

The Scribe-Master DGPRO is proudly designed, engineered, and patented in the UK. Built to deliver flawless performance on the jobsite, it's trusted by professional kitchen fitters, joiners, and bespoke fabricators alike.

📐 SPECIFICATIONS:

• Groove Length: 447mm

• X-Axis Travel: 447mm

• Y-Axis Travel: 415mm

• Built-in Fall: 0.5°

• Jig Size: 600mm × 600mm × 12mm

• Weight: 4.0kg

• Material Compatibility: Solid Timber, Compact Laminate, Polymer Resin, Solid Surface

• Construction: CNC-machined phenolic HPL

• Patent : GB1718517.4
