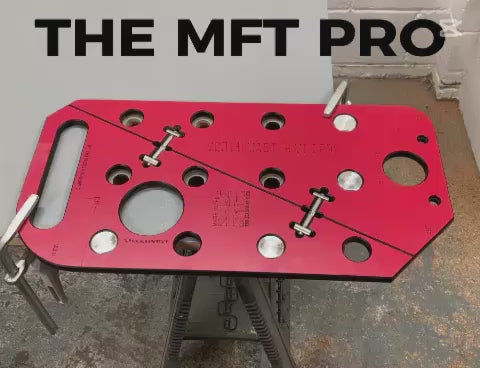

SCRIBE-MASTER – MFTPRO

Modular MFT Worktop Routing Jig (20mm Holes at 96mm Centres)

The SCRIBE-MASTER MFTPRO is a compact, modular routing jig designed for creating accurate MFT-style worktops from sheet material. Whether you’re replacing an existing top or building a custom-size slab, the MFTPRO allows you to machine precise 20mm holes at 96mm centres using a plunge router.

Manufactured from 12mm Compact Grade High Pressure Laminate (HPL), the jig provides durability, dimensional stability and repeatable accuracy for both workshop professionals and serious home users.

What the MFTPRO Does

• Creates 20mm dog holes at 96mm centres

• Produces replacement MFT tops from sheet material

• Allows custom-sized MFT slabs

• Includes built-in functional recess features

• Supports accurate indexing for repeat rows

Designed to work with a 30mm guide bush system, the MFTPRO provides controlled routing without the need for complicated alignment systems.

Precision Built for Workshop Accuracy

12mm Compact Grade HPL Construction
Strong, wear-resistant and dimensionally stable for long-term accuracy.

Edge Guides & Index Pins
Accurate initial row positioning with reliable indexing for subsequent rows.

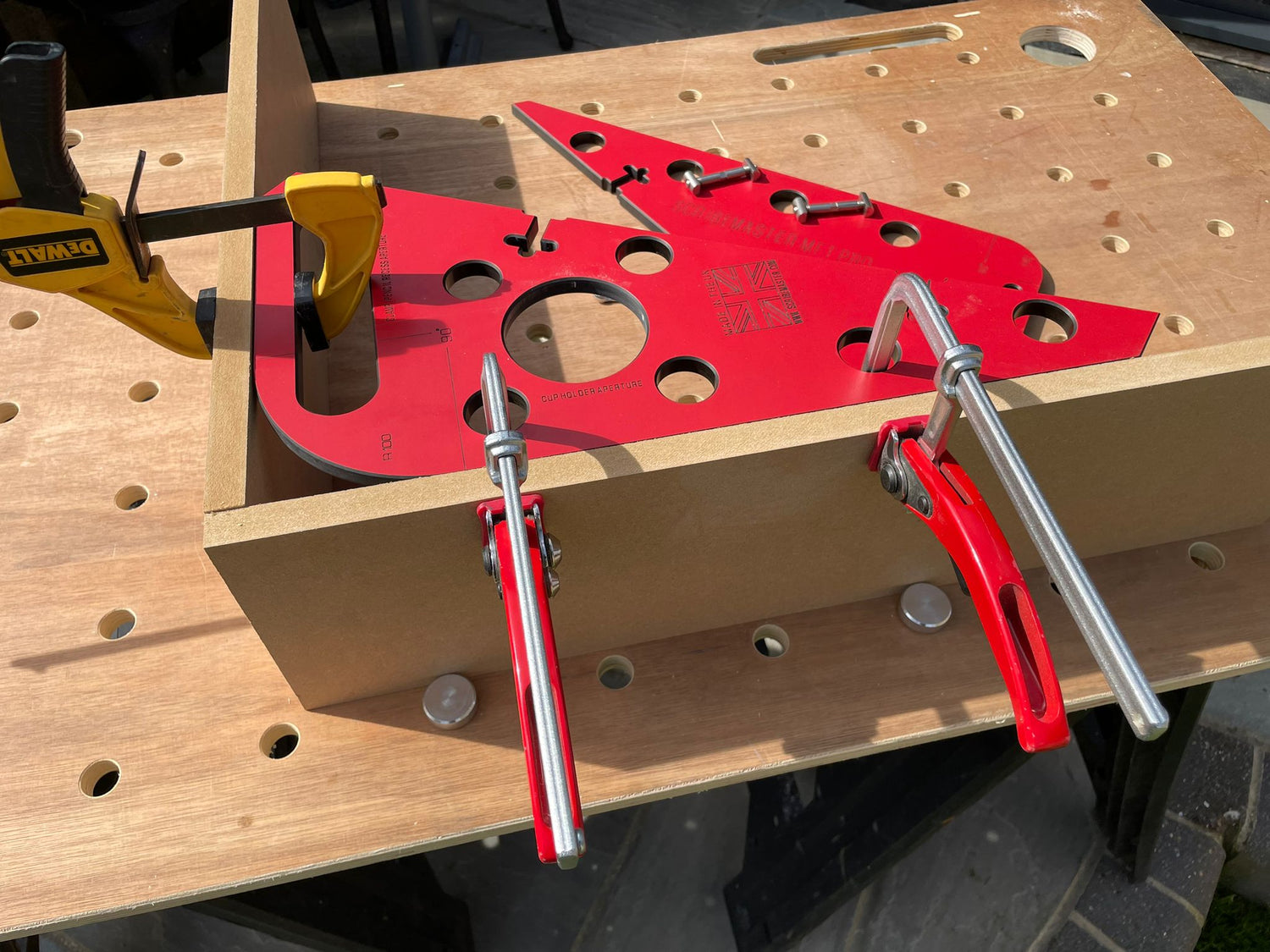

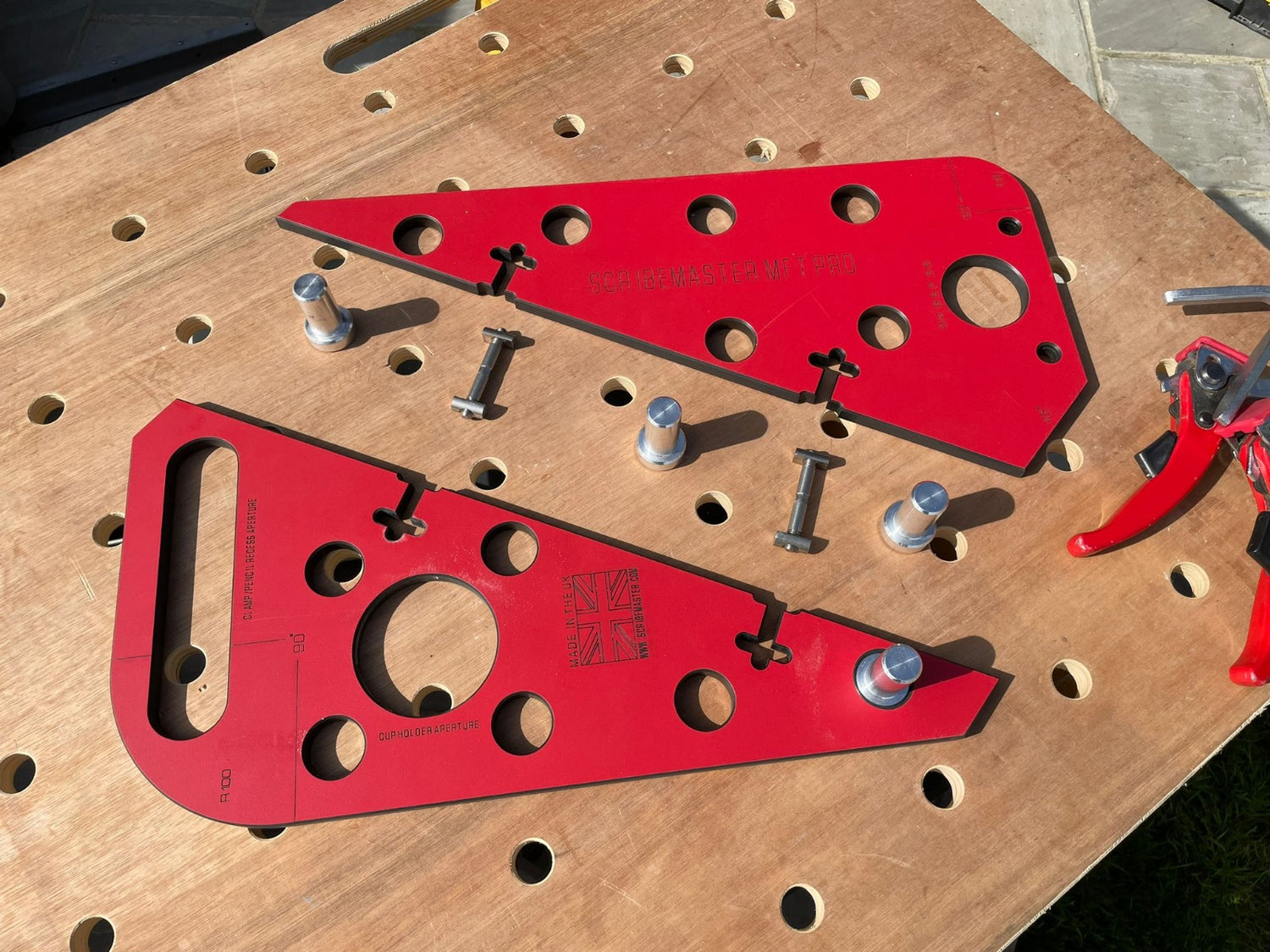

Modular Split Design
Can be separated into two right-angle squares for flexible layout and storage.

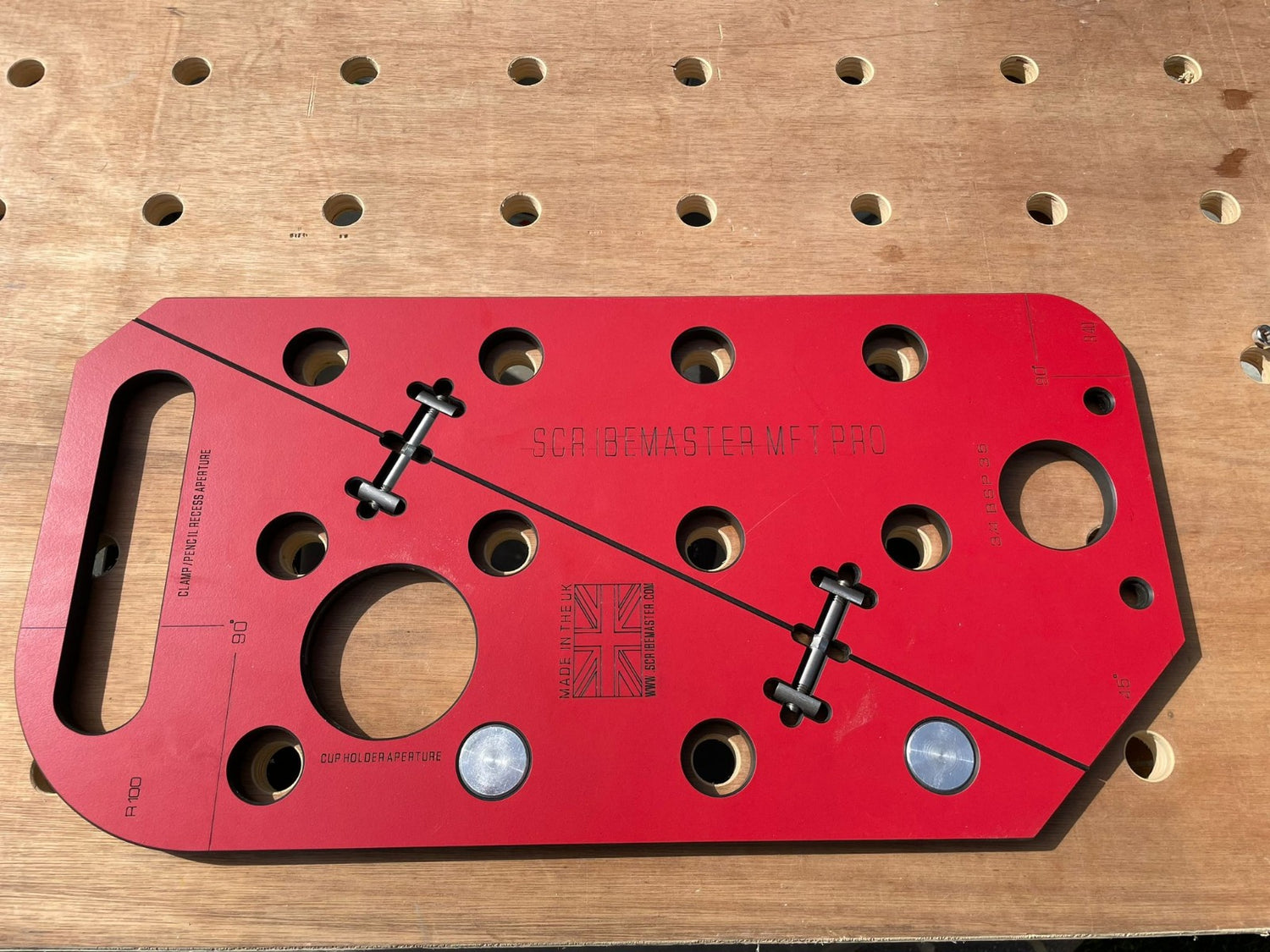

Integrated Functional Recesses

• Handle & pen holder / desk tidy recess

• Cup holder recess

• BSP / hinge recess aperture

• 45° end cut

• R100 & R40 corner radii

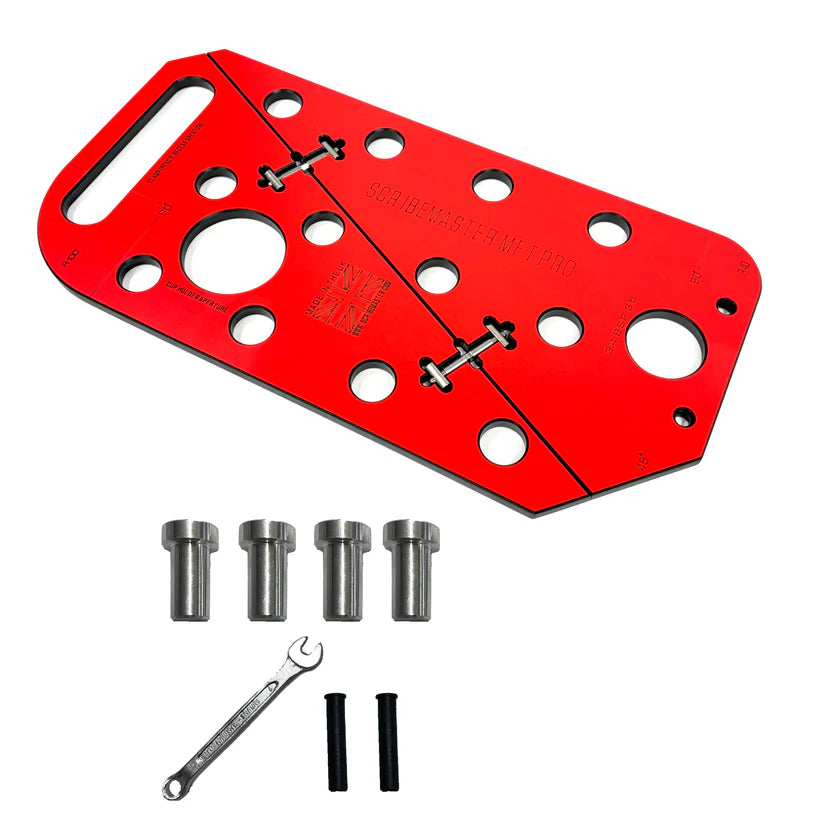

Includes 2 x 10mm Pins & 4 x Aluminium Dogs

Why Choose the MFTPRO?

• Create Any Size MFT Top

• Compatible with most major router brands

• No CNC required

• Accurate repeatable hole pattern

• Modular, compact and easy to store

• Suitable for professional and hybrid workshops

Whether you're building a new workbench or replacing a worn top, the MFTPRO provides precision without the need for large machinery.

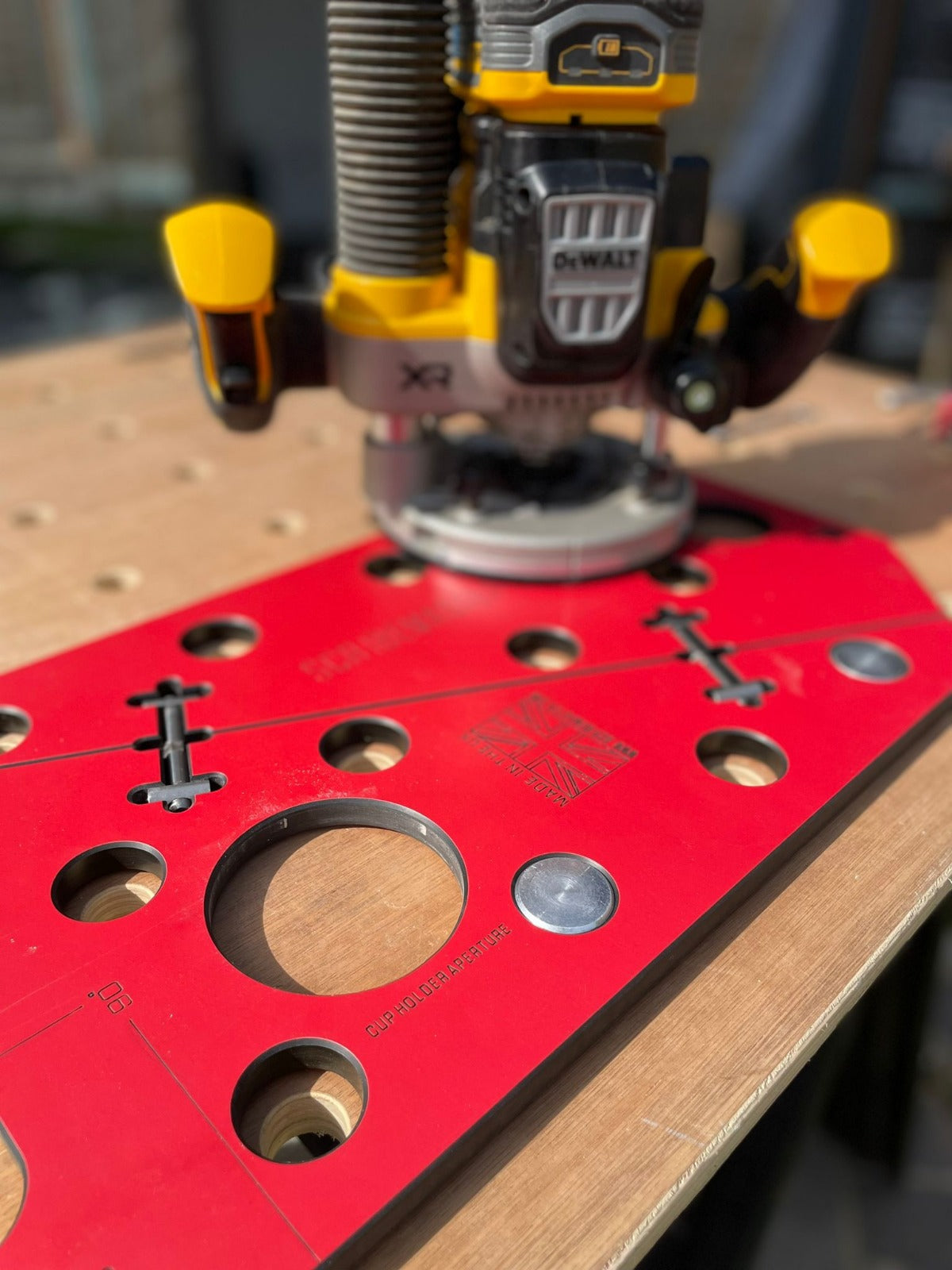

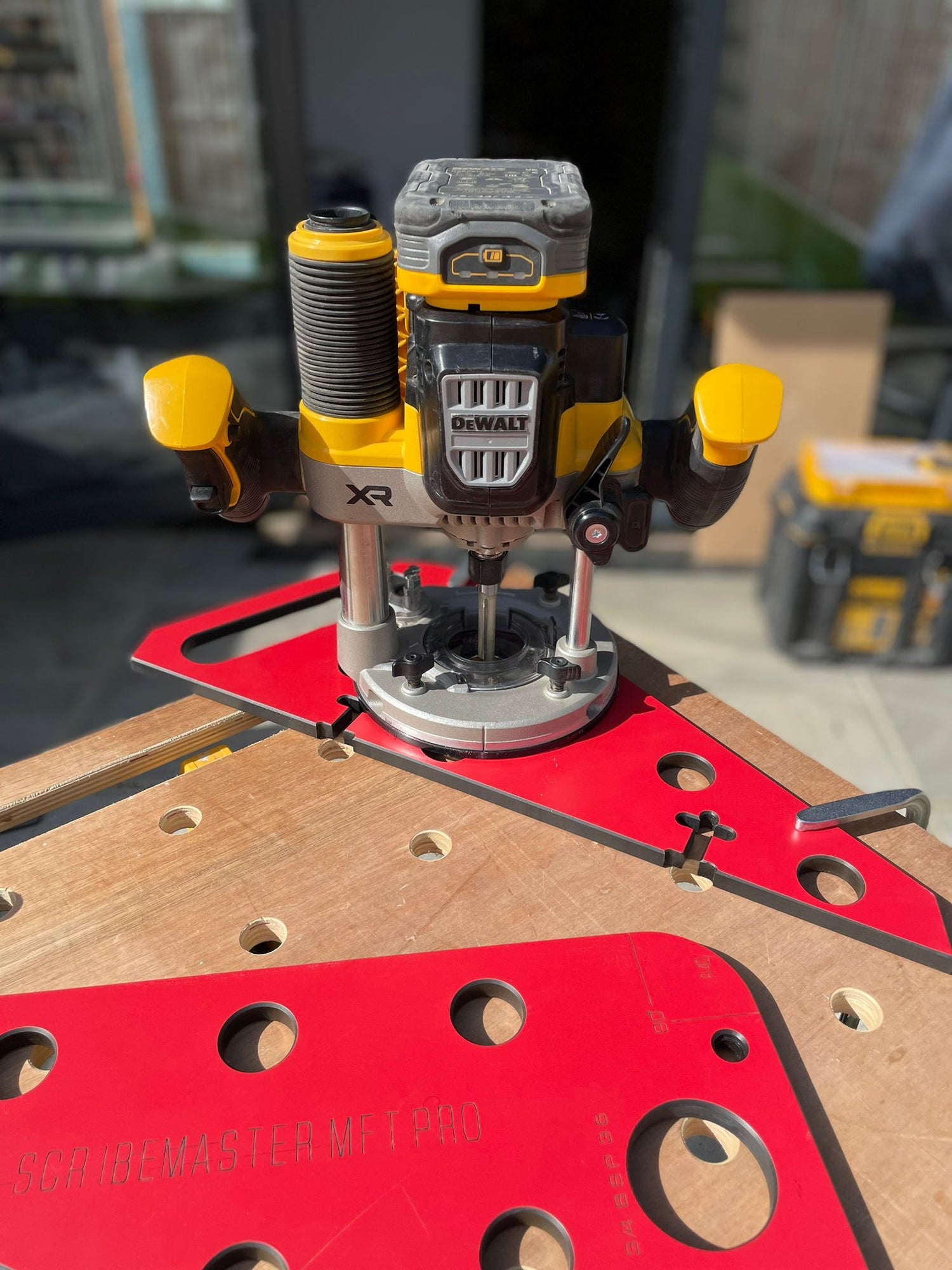

Router & Tool Requirements

• Portable plunge router (½” / 12.7mm shank capacity)

• Minimum 1300W

• 30mm guide bush

• 20mm router cutter (long series plunge type recommended)

Specifications

Length: 520mm
Width: 260mm
Thickness: 12mm
Guide Bush: 30mm
Maximum Cutter Width: 20mm

Ideal For

• Custom MFT worktop creation

• Replacement bench tops

• Workshop upgrades

• Precision clamping systems

• Hybrid workshop and professional environments
