🔹 SCRIBE-MASTER- DGPLUS3

Multi-Insert Drainer Groove Jig with Flex-Tech

The SCRIBE-MASTER DGPLUS is a versatile multi-insert routing jig designed for cutting precision drainer grooves in solid timber and compact laminate worktops. Built for installers who want pattern flexibility without moving to a full carriage system, the DGPLUS combines interchangeable inner plates with Flex-Tech anti-bow stability.

With a built-in 0.5° fall and removable insert system, it allows you to create different drainer groove styles while maintaining consistent accuracy and clean finish quality.

What the DGPLUS Does

• Routes straight and fan-style drainer grooves

• Maintains integrated 0.5° drainage fall

• Allows interchangeable groove patterns

• Supports inspection of cut quality without repositioning the jig

• Works on solid timber and compact laminate

Designed for professional kitchen fitters who require flexibility across installations.

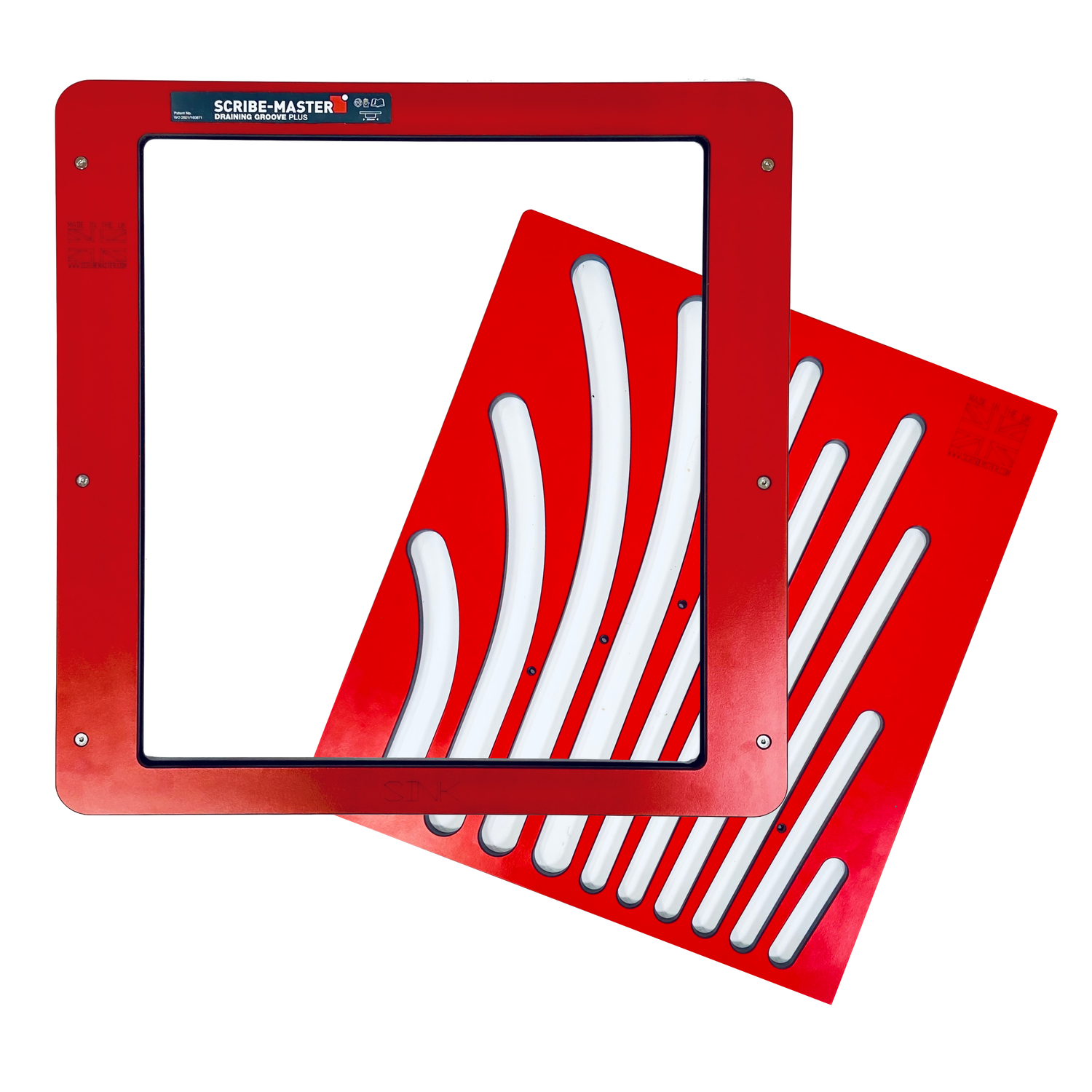

Interchangeable Insert System

This DGPLUS includes a reversible inner plate:

• Curved Fan

• Lightning Fan

Additional accessory plates are available for:

• Straight  Fan

• Straight Slot

• Alternative decorative groove patterns

The insert can be removed during setup to check groove finish and positioning without disturbing jig alignment.

Flex-Tech Stability Built In

When routing with heavier ½ routers, rail flex can affect groove accuracy.

DGPLUS incorporates Flex-Tech adjustable support screws to:

• Prevent bowing

• Improve groove consistency

• Maintain depth control

• Deliver clean, uniform results

Durable & Professional Construction

• CNC-machined Compact Grade HPL

• 12mm thick for stability

• Three support screws to minimise deflection

• 50mm groove pitch

• 455mm groove length

Designed for repeat professional use in demanding installations.

Why Choose the DGPLUS?

• Greater versatility than fixed-slot jigs

• Easier setup than carriage-based systems

• Pattern flexibility without complexity

• Stable routing performance

• Professional finish results

If you regularly install timber or compact laminate worktops and want the ability to vary groove style, the DGPLUS offers a balanced solution.

Router & Cutter Requirements

• ½ plunge router (minimum 1300W)

• Suitable drainer groove cutter

• Two F-clamps

Recommended cutters:

• Cove cutter 19.1mm (R9.5mm or R6.0mm radius)

• Flat bottom drainer cutter 16mm (2.5mm radius)

Specifications

Fall: 0.5°
Groove Pitch: 50mm
Groove Length: 455mm
Slat Width: 19.8mm
Length: 600mm
Height: 585mm
Thickness: 12mm
Weight: 4.4kg

Ideal For

• Solid timber worktops

• Compact laminate installations

• Decorative drainer groove patterns

• Professional kitchen installations
