🔹 SCRIBE-MASTER- DGSSSF

Straight Slot & Straight Fan Drainer Groove Inner Plate (For DGPLUS & DGPRO)

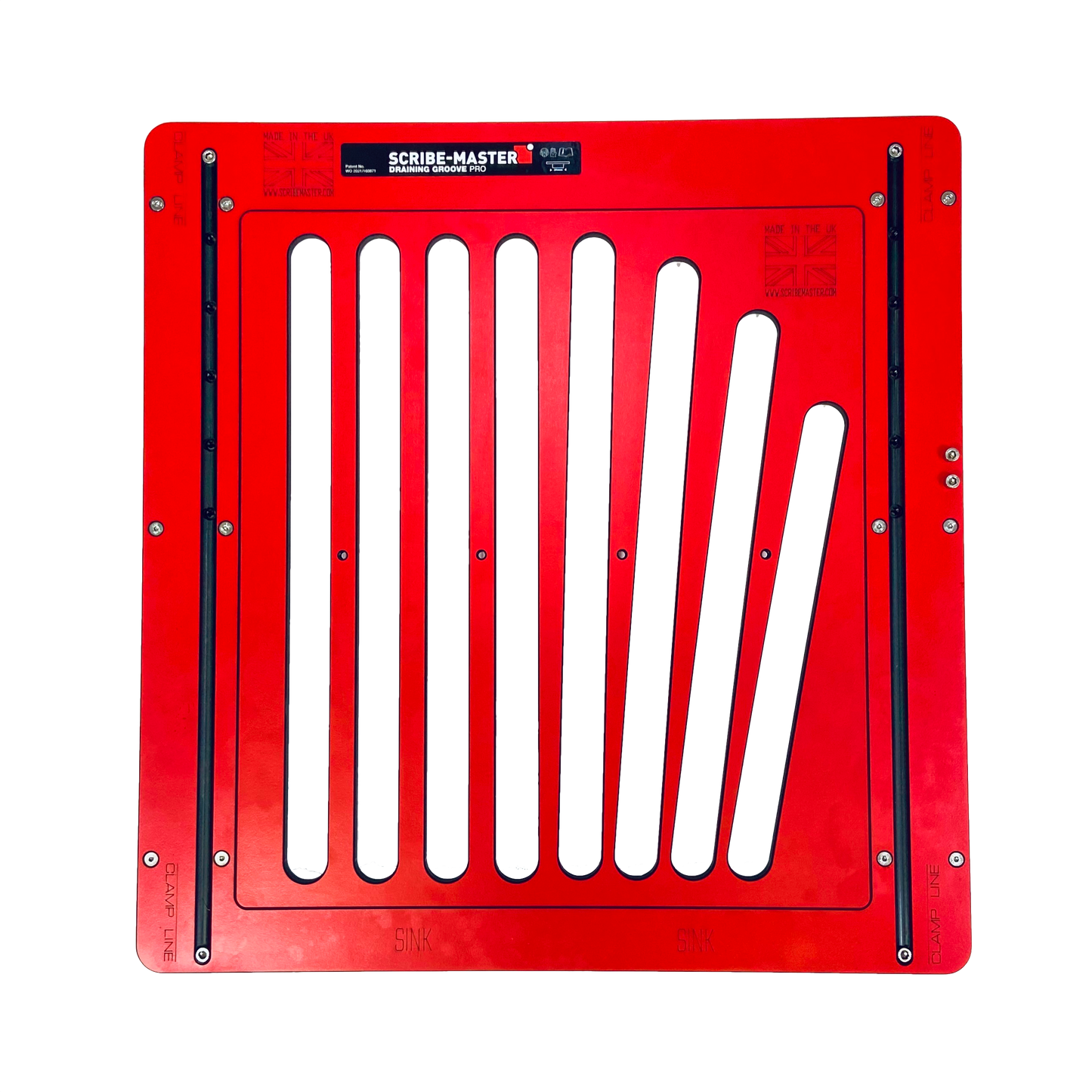

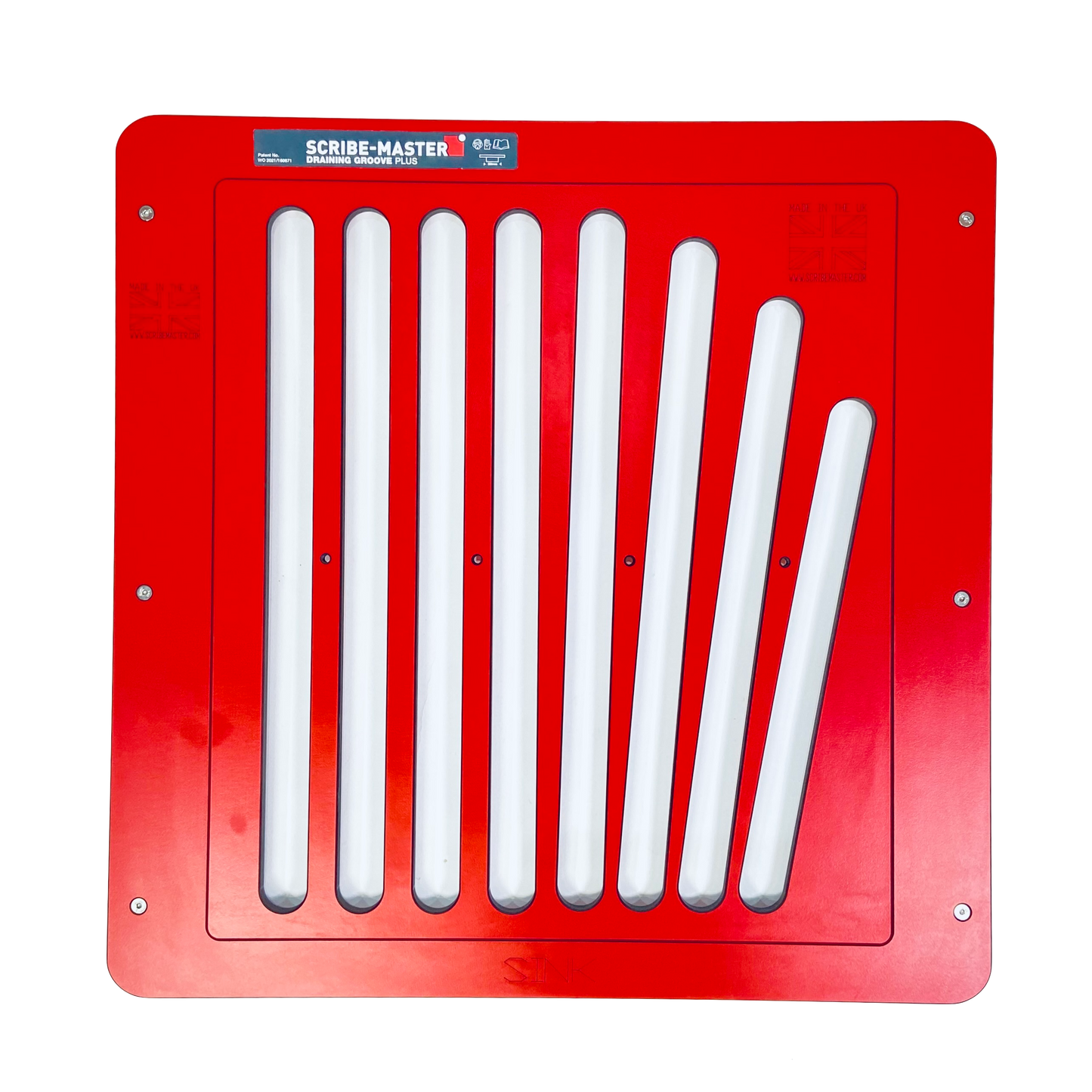

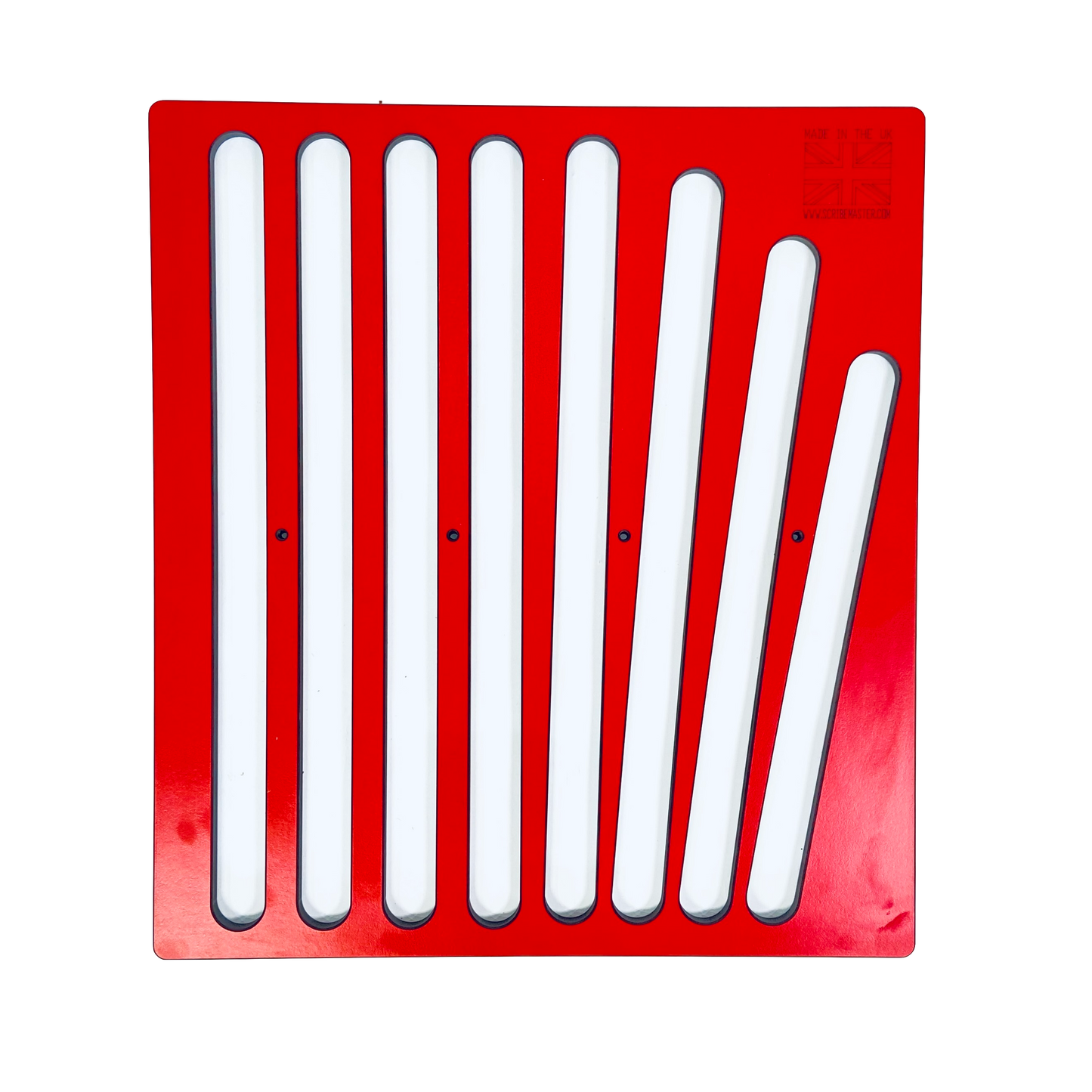

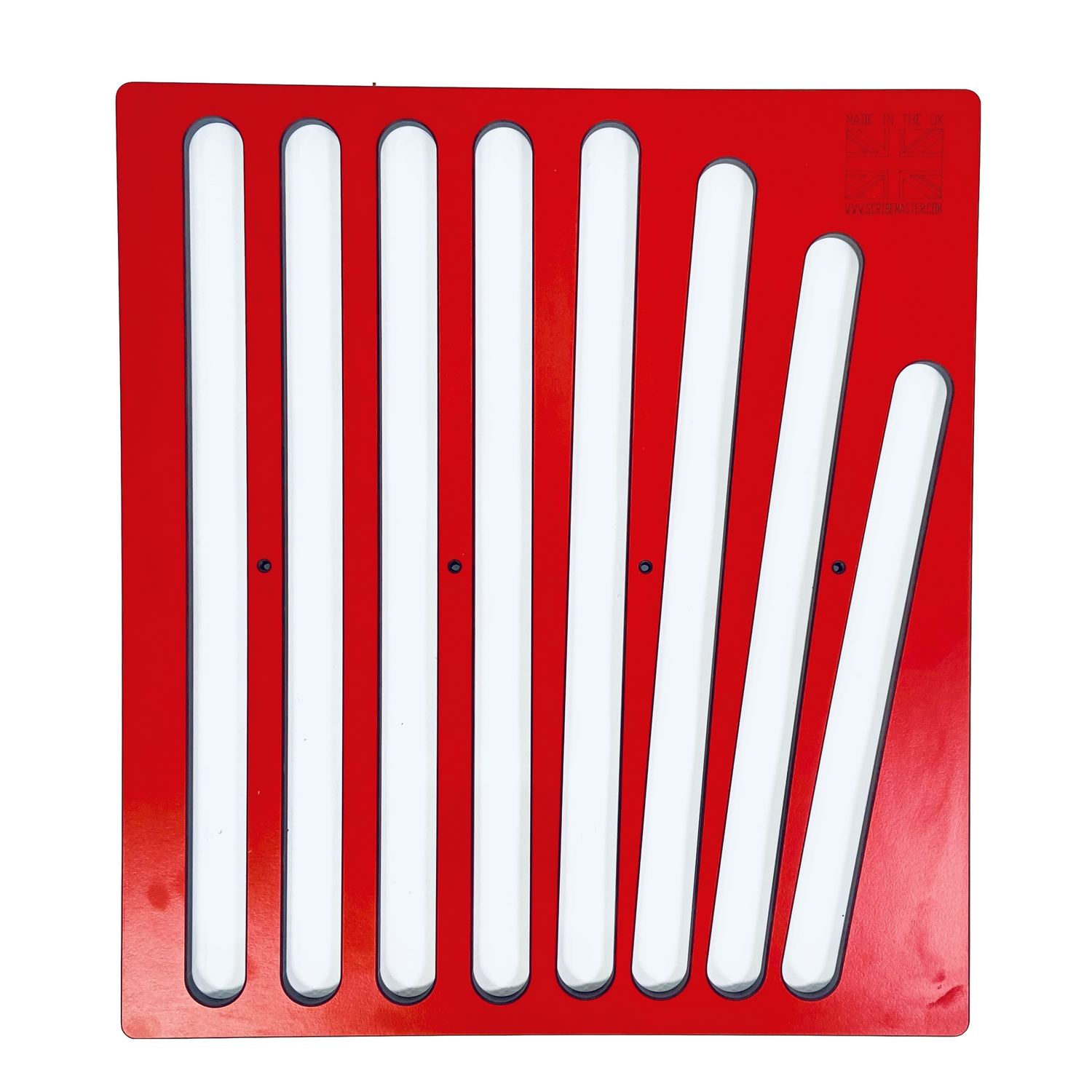

The SCRIBE-MASTER DGSSSF Inner Plate is a precision template accessory designed for use with the DGPLUS and DGPRO drainer groove jig systems. It enables accurate straight slot and straight fan drainer groove patterns in solid timber and solid surface worktops.

Manufactured from CNC-machined 12mm Compact Grade HPL, it ensures consistent alignment and stable routing performance while maintaining the integrated 0.5° fall of the host jig frame.

What It Does

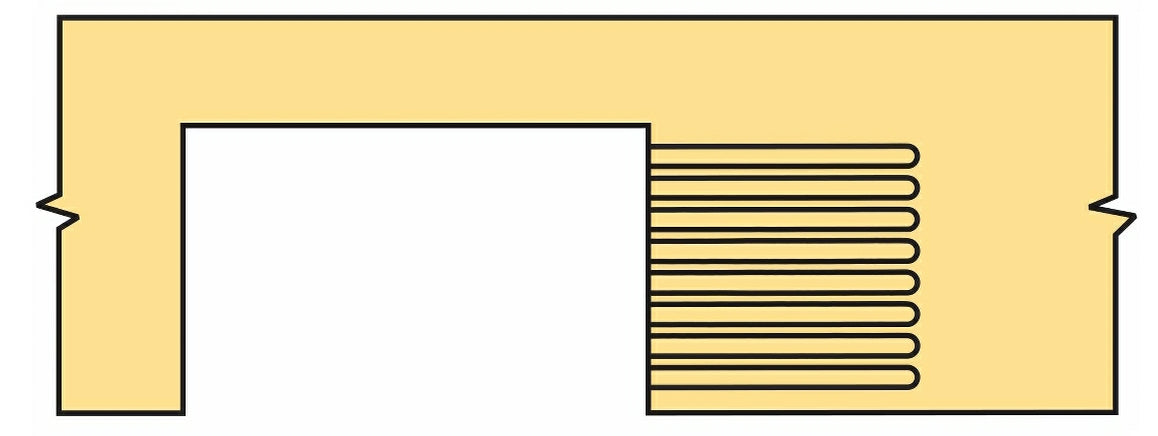

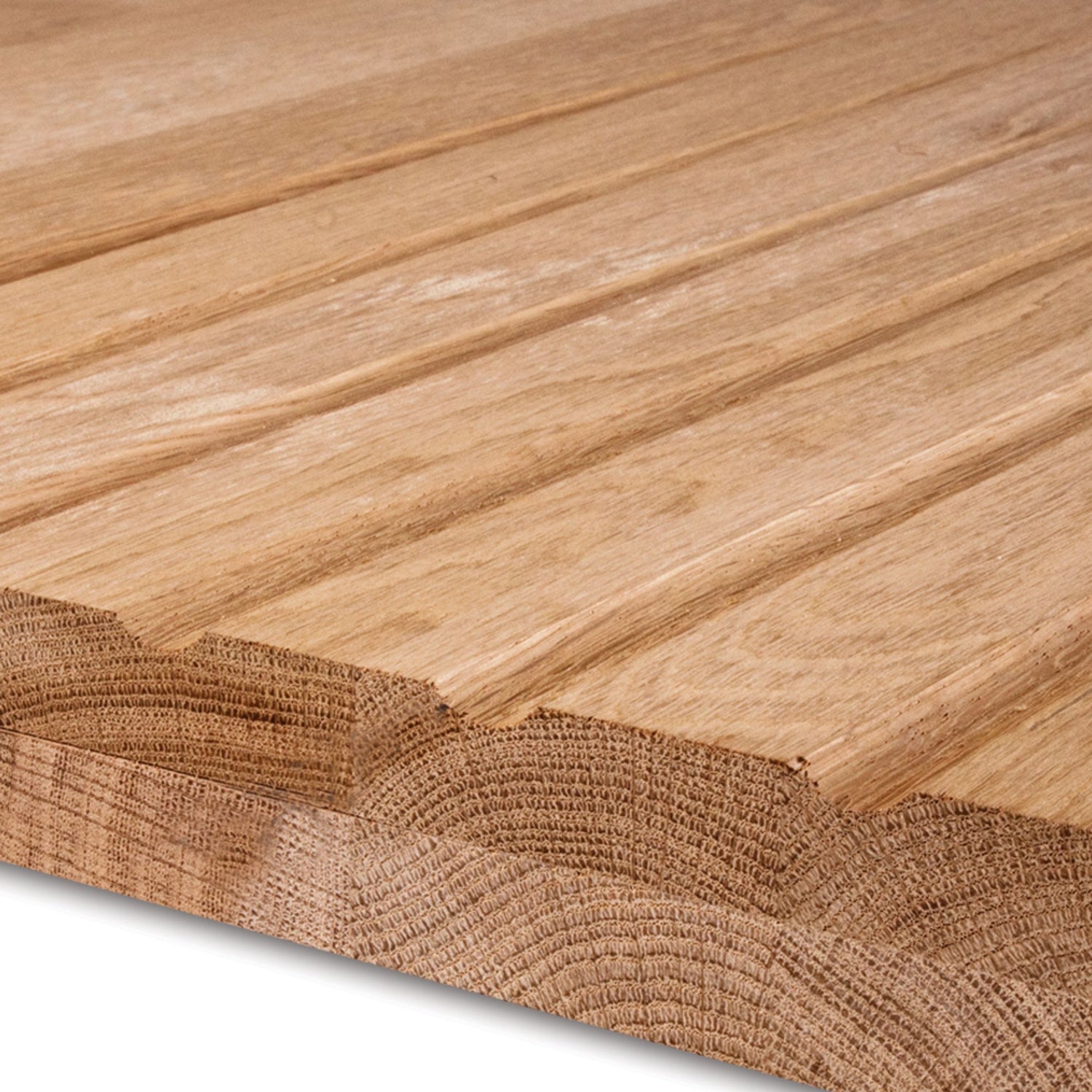

• Creates straight slot drainer grooves

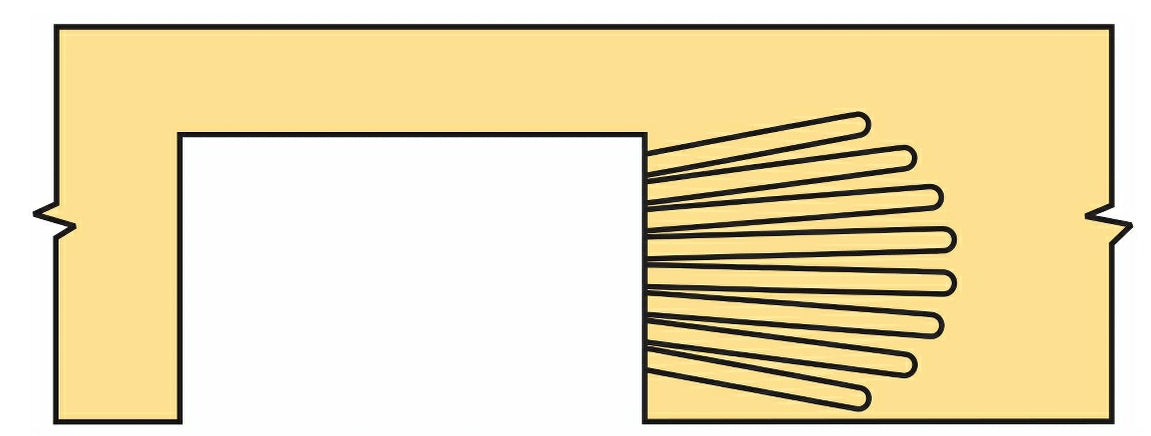

• Produces straight fan groove layouts

• Maintains 0.5° fall via DGPLUS/DGPRO frame

• Provides repeatable professional results

Ideal for installers seeking clean, modern drainer layouts.

Built for Stability

• 12mm CNC-machined Compact Grade HPL

• Secure fit within DGPLUS & DGPRO frames

• Compatible with Flex-Tech anti-bow system

• Designed for repeat professional use

Requirements

• Must be used with DGPLUS or DGPRO jig frame

• ½ plunge router

• 30mm guide bush

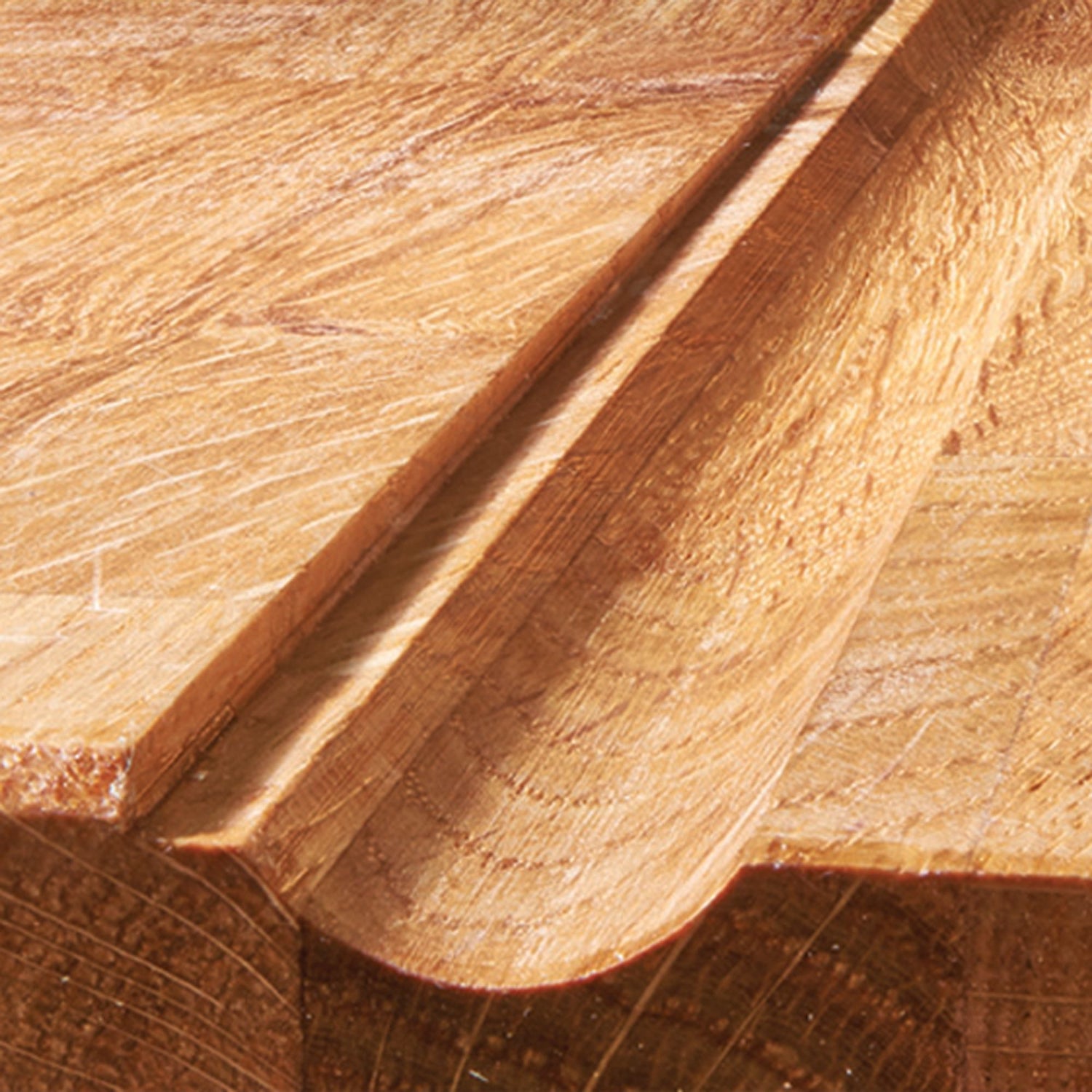

• R9.5mm cove cutter with long shank

Specifications

Pitch Range: 45mm€“75mm
Groove Length: 438mm
Length: 500mm
Width: 500mm
Thickness: 12mm
Guide Bush: 30mm
Recommended Cutter: Cove R9.5mm
