Scribe-Master

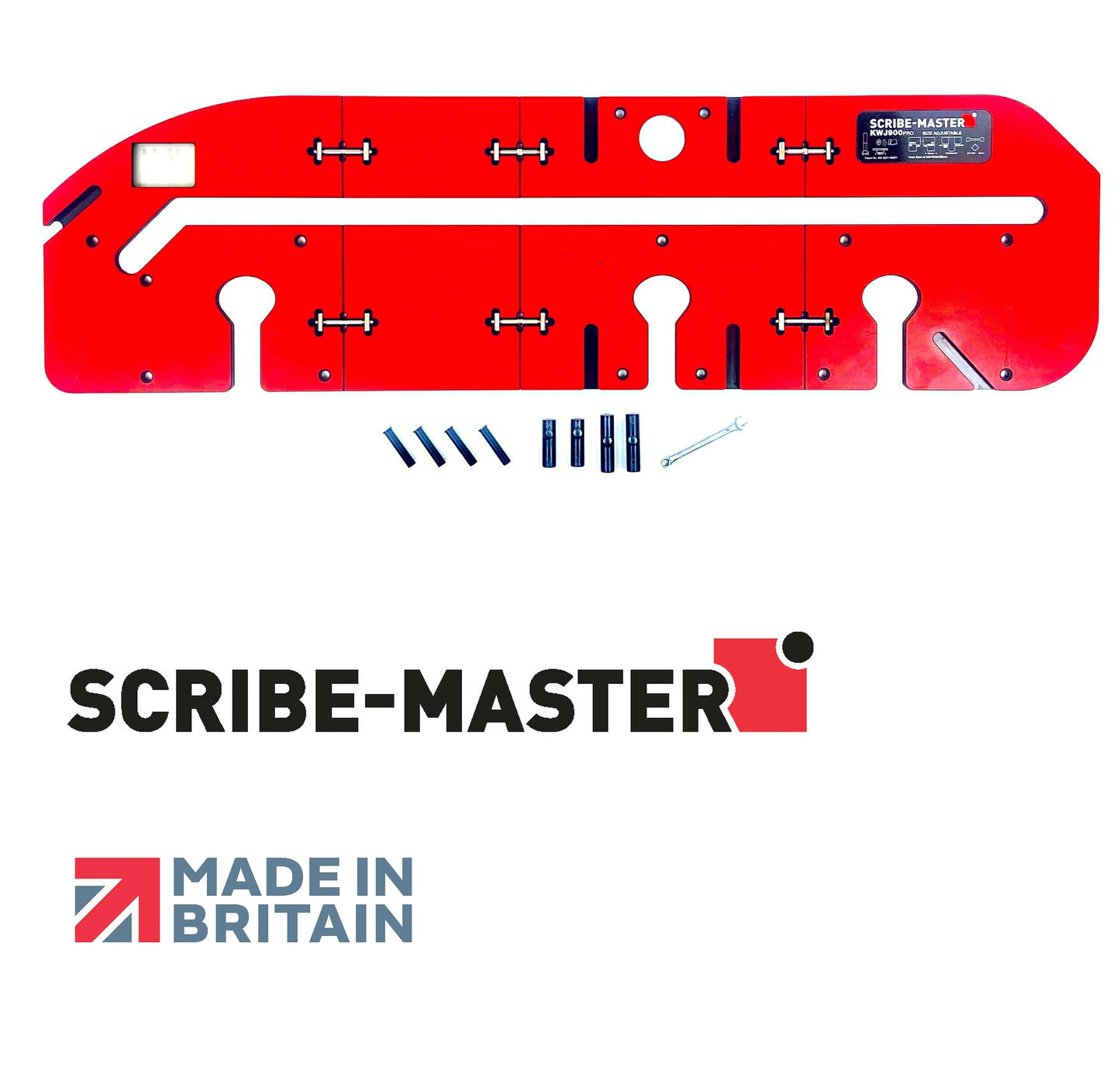

900 Pro 4 Piece Worktop Jig with SiteLine Technology from ScribeMaster

Regular price £240.00 GBP
Regular price Sale price £240.00 GBP
Sale Sold out
Shipping calculated at checkout.

The revolution in kitchen fitting has arrived !!

This is the only Worktop Jig you will ever need.

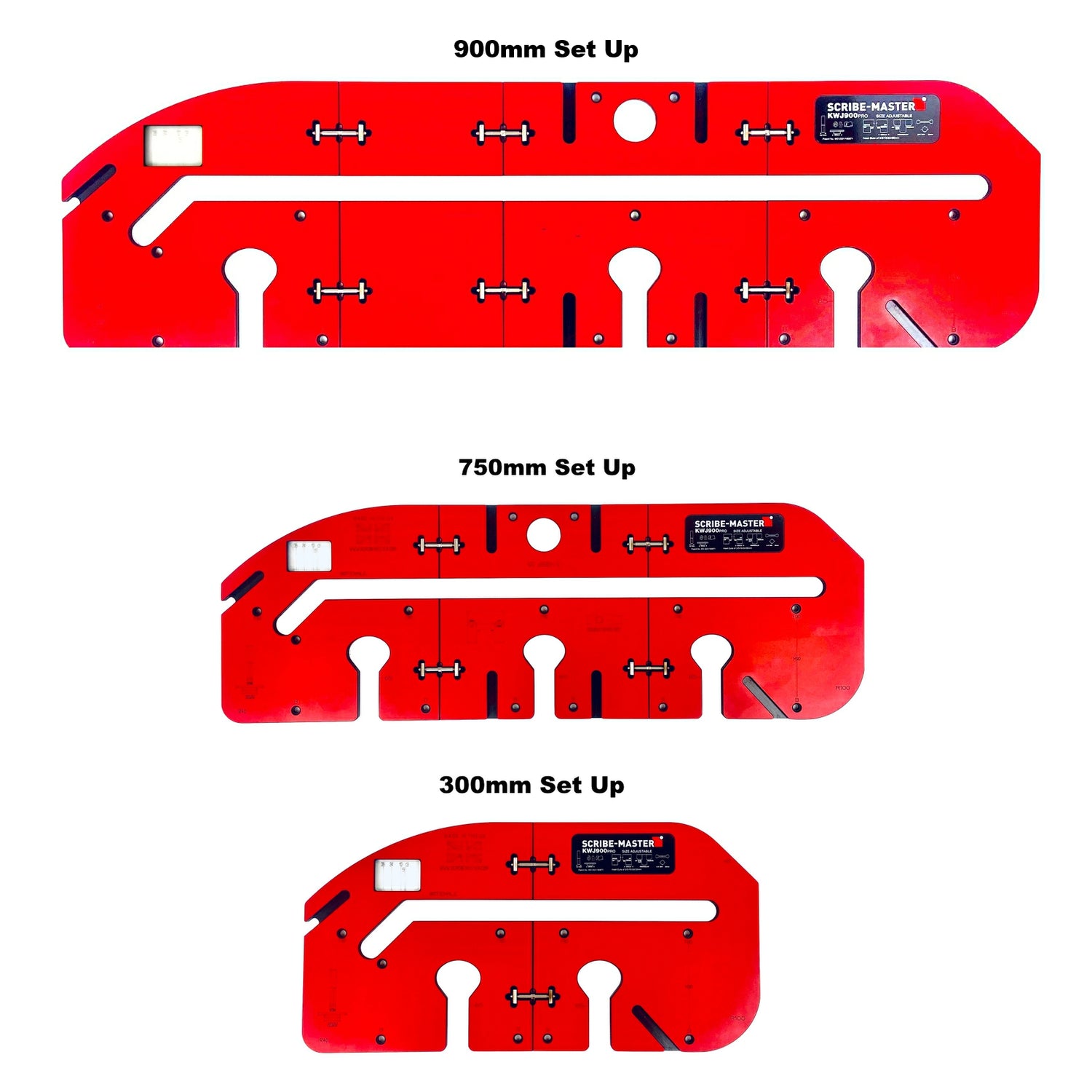

This one Jig, makes a 600mm jig a 750mm jig and a 900mm jig.



No more fiddling about measuring from the back of the worktop to line up your jig

Use the front edge of your worktop to set up your jig using the SiteLine technology for faster, more accurate Masons Mitre worktop joints.

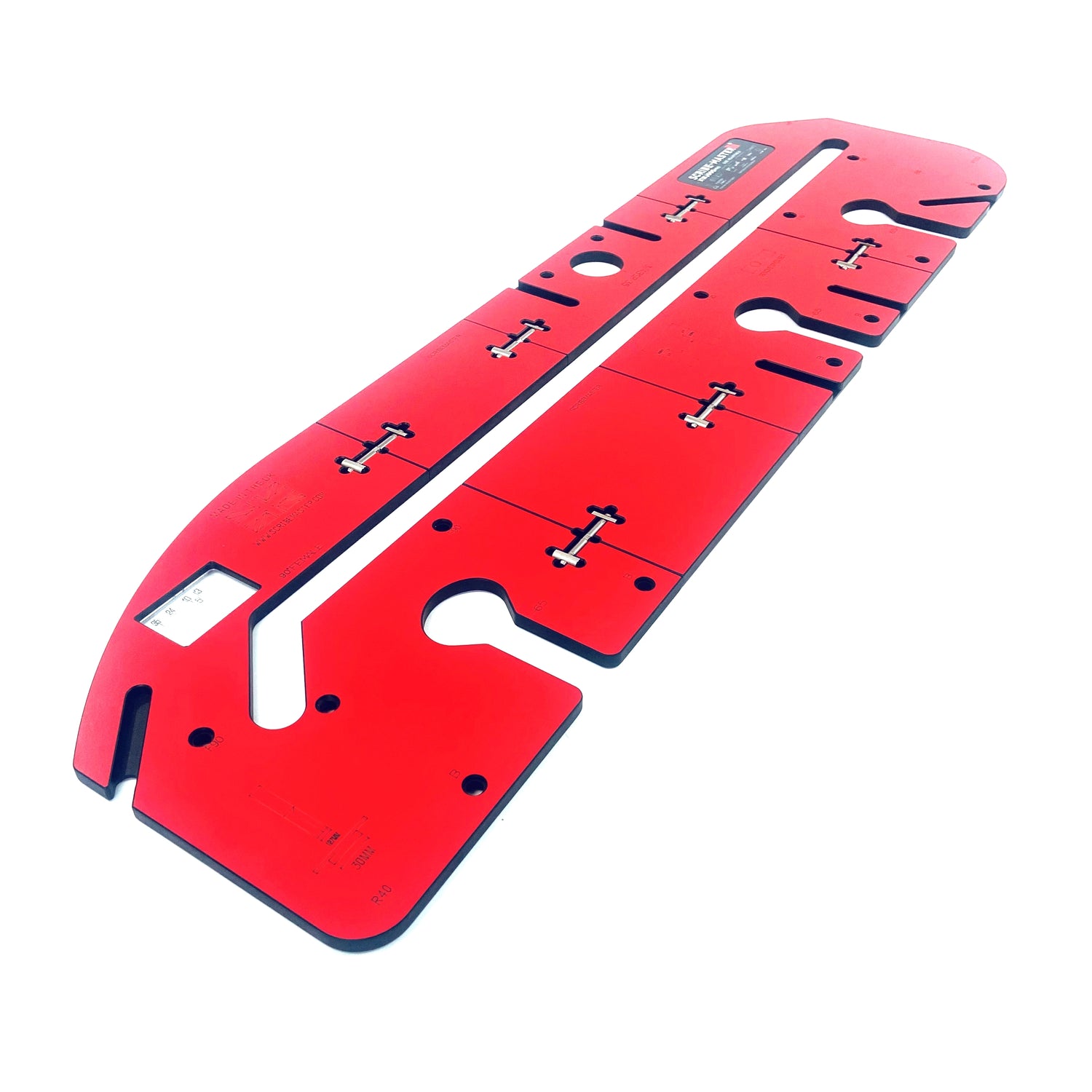

ScribeMaster KWJ900Pro Worktop jig with Siteline Technology

Make the jig to the size you require and then simply mark your worktop with a small pencil line, insert the pins and use the 'SiteLine' window, to set the jig and cut !!

ScribeMaster SiteLine window on KWJ900Pro Worktop Jig

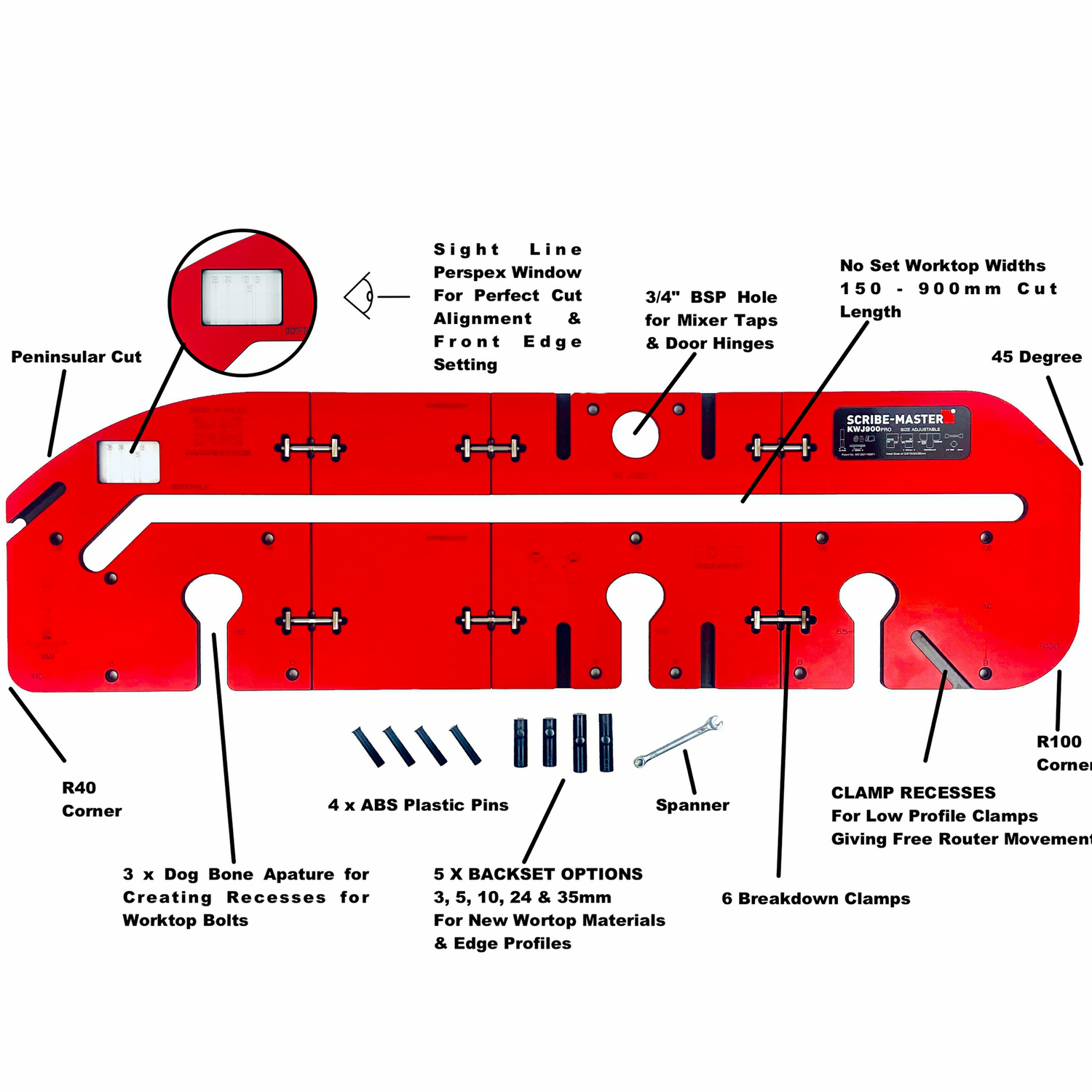

  • Patented 4 Piece Worktop Jig for every size of job.
  • Front Edge Setting using Patented SiteLine Technolgy.
  • Pegs in, line up using the SiteLine window, clamp and cut, Job Done !!
  • Laser engraved markings for clear set up & front edge datum points.

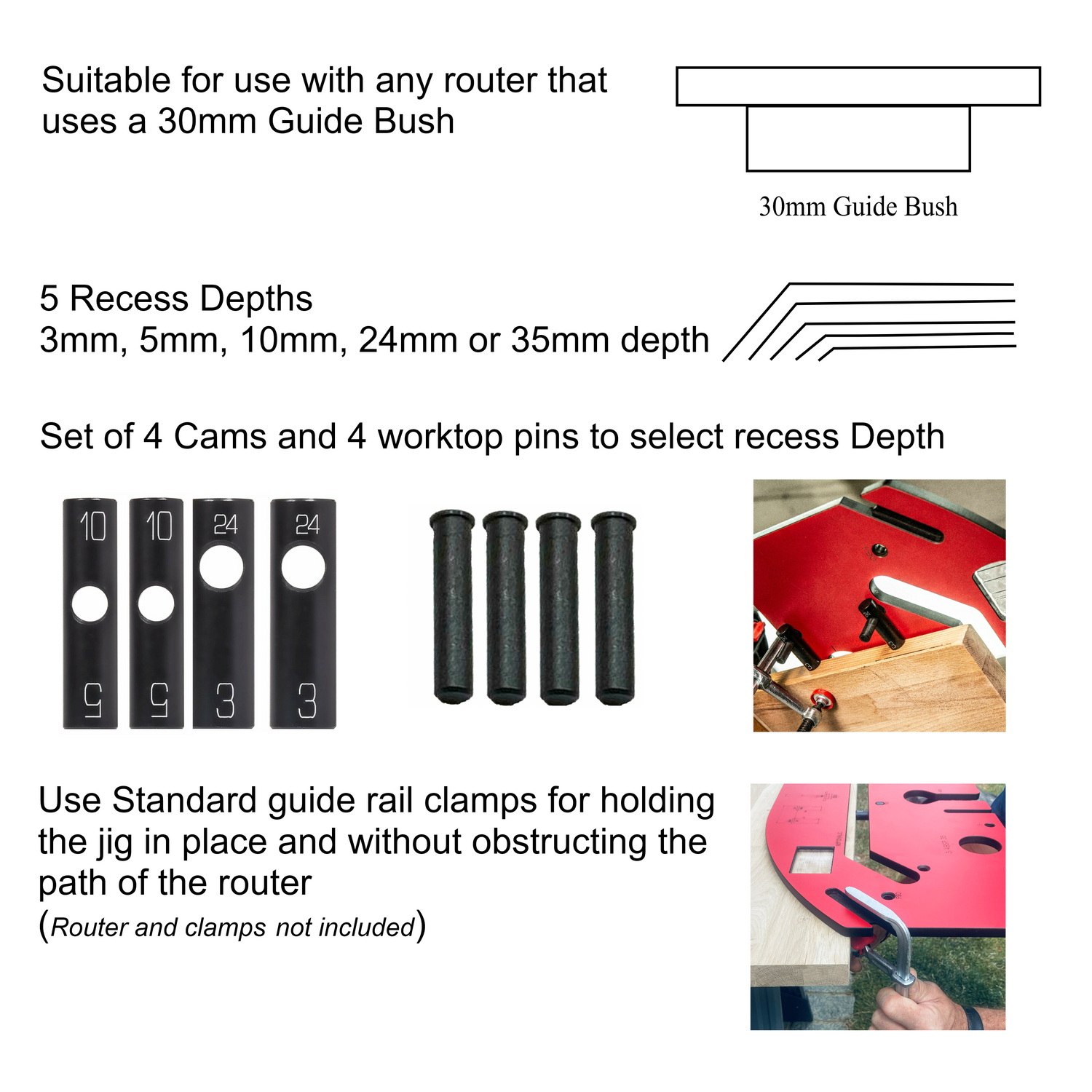

  • 5 x Inset options, using newly designed cams that are provided, for new style worktop materials & edge profiles can be used with conventional chipboard to polymer resin to compact laminates.
  • No packing of rear datum pegs if worktops are scribed.

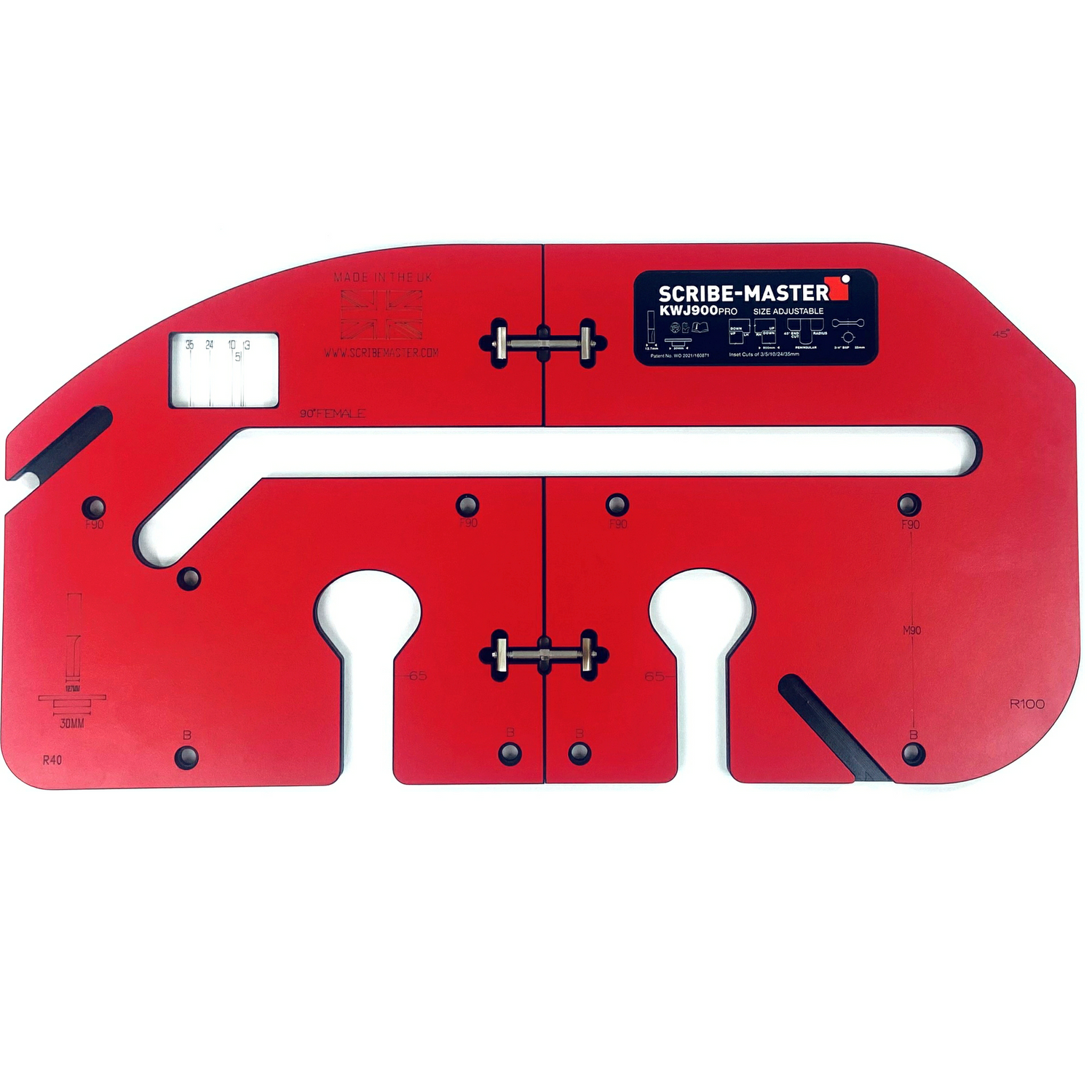

  • Jig can be made into a compact jig for bathroom vanity units etc. without losing the SiteLine technology.
  • Individual components can be used stand as stand alone jigs for key operations such as 35mm hinge hole cuts, tap chole cuts or individual bolt hole cuts.
  • Option to trim worktop ends by mm's using the M90 peg positions without changing cutters or guide bush saving time.
  • 3 'Dog Bone' apertures for speed when cutting bolt holes.
  • Adjustable 'Dog Bone' depths can be set using cams provided for differing lengths of bolts.
  • Recessed clamp slots to avoid router fouling.

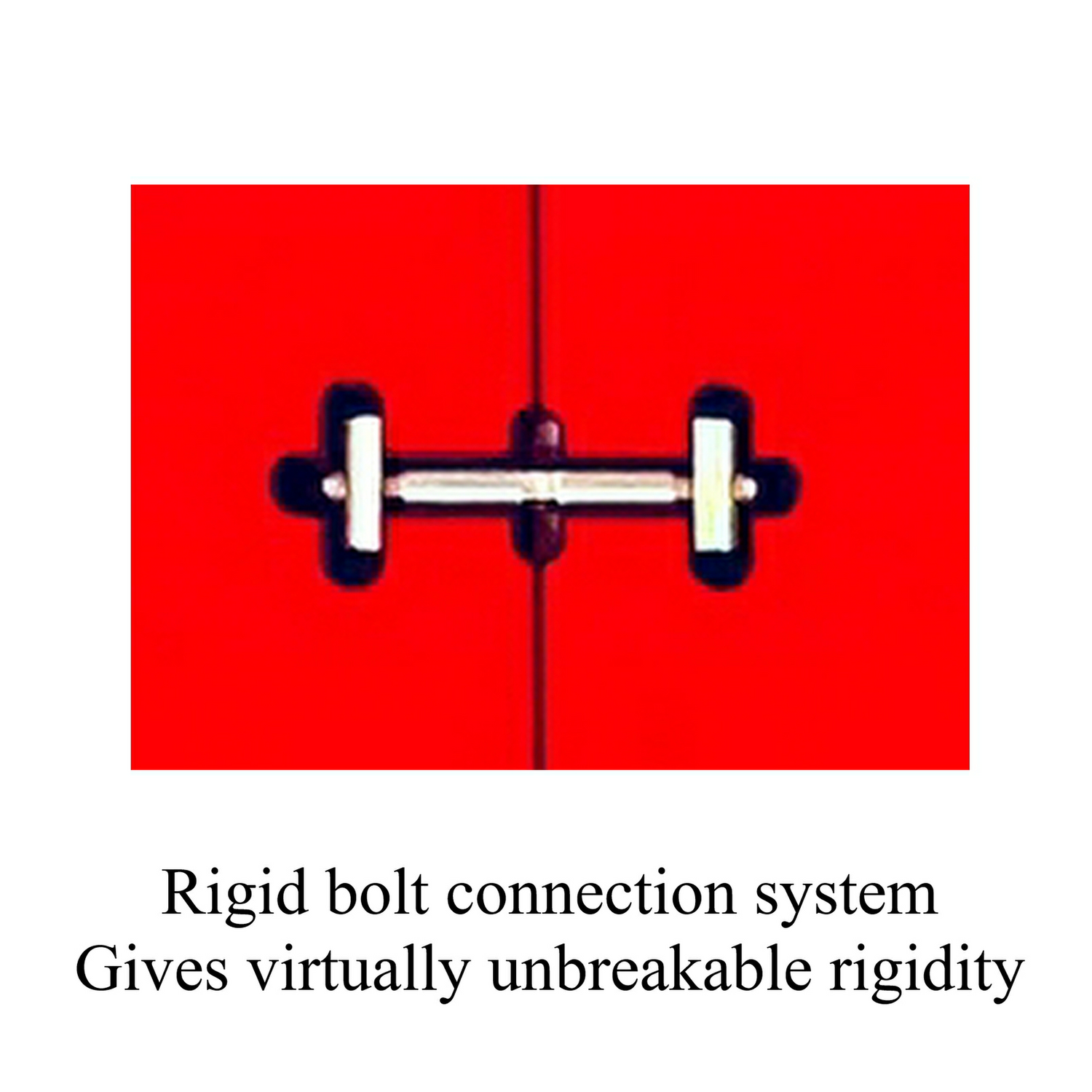

  • Rigid bolt connections for virtually unbreakable joins and zero flexing.
  • Jig can be broken down for ease of transportation.

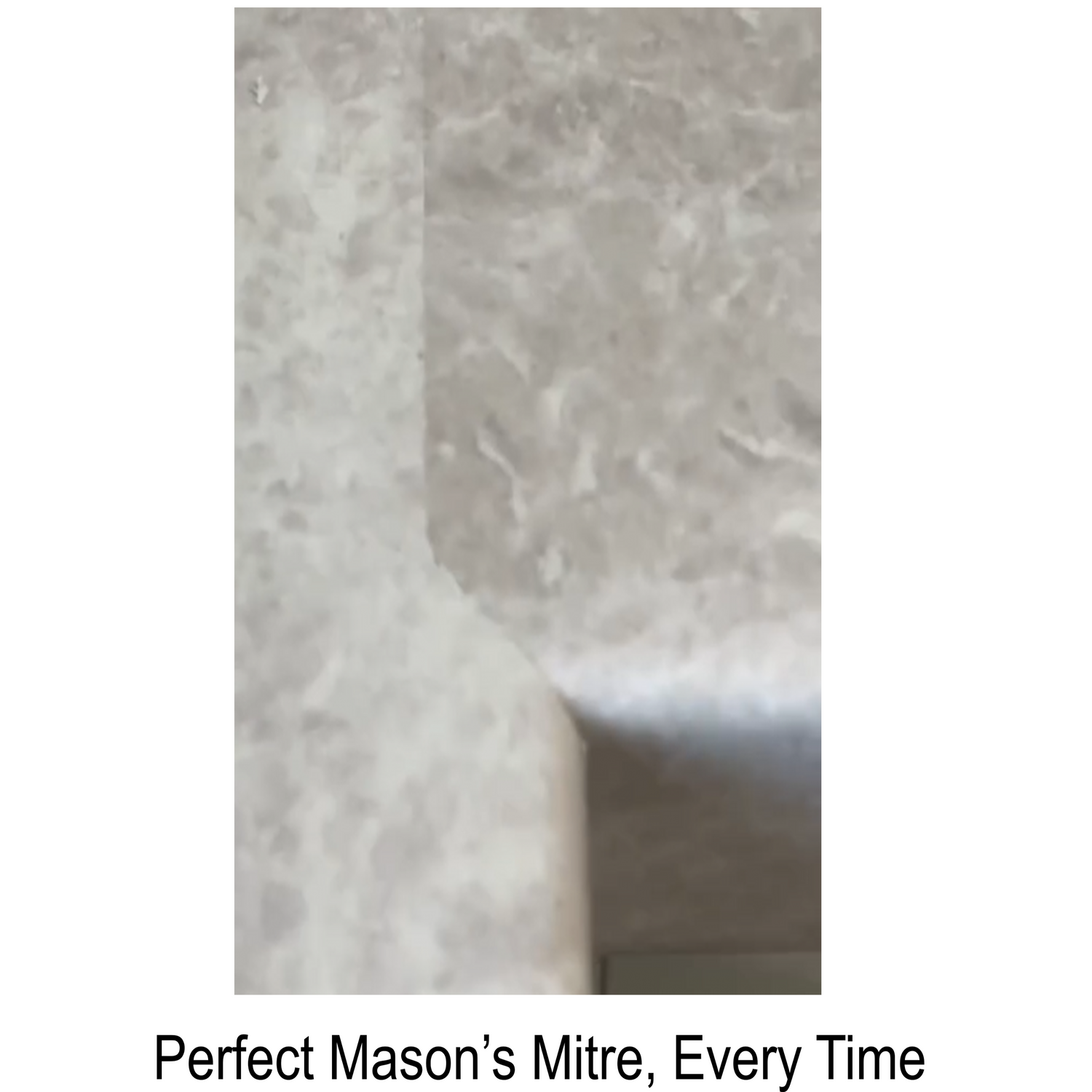

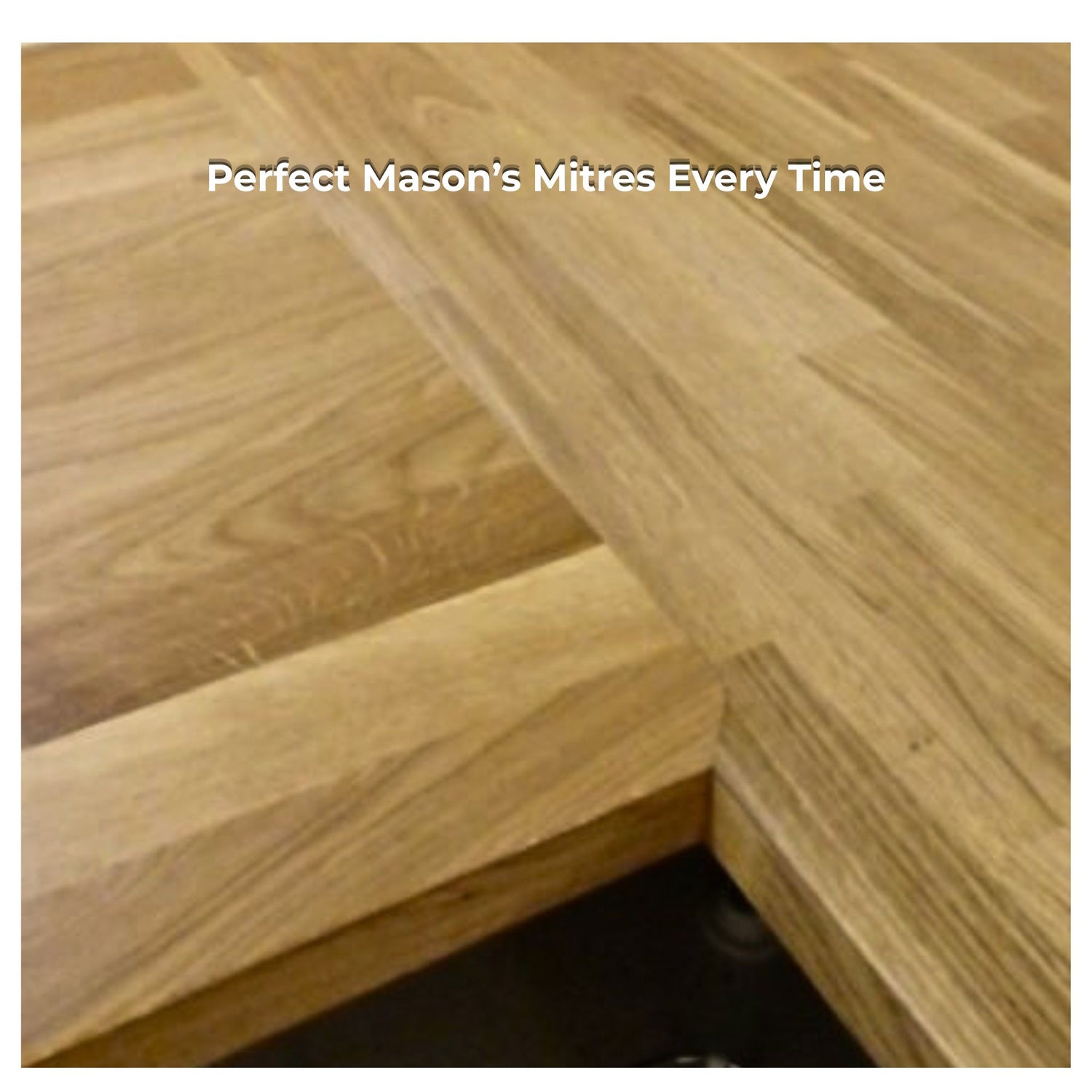

  • Cut both male and female mason mitres in minutes.
  • CNC machined from High Pressure Laminate for durability and accuracy.
  • Designed, manufactured & Patented in the UK.



 ScribeMaster KWJ900Pro Worktop Jig with Logo
