Scribe-Master

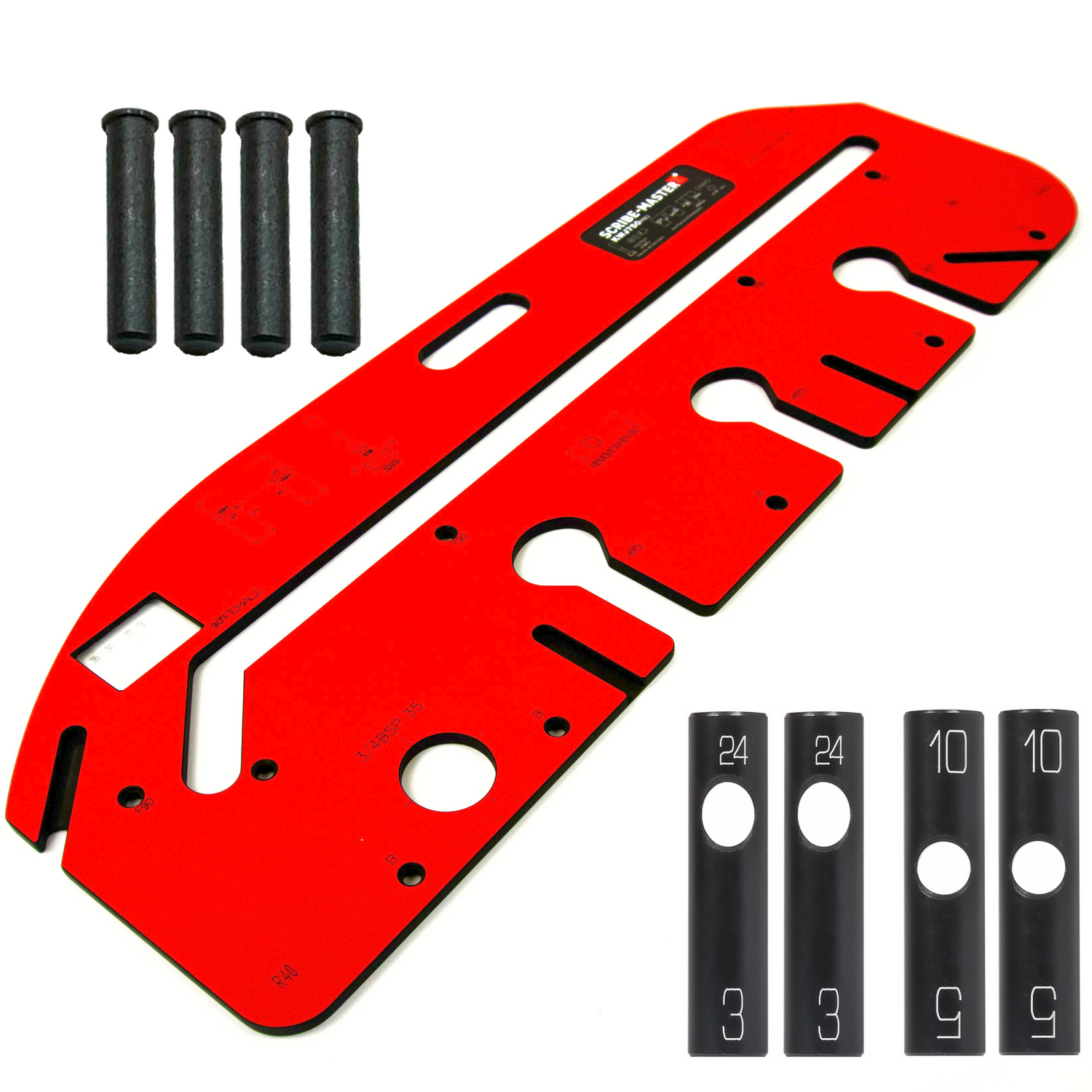

Pro Multi-Material Worktop Jig for Seamless Joints in Kitchen Worktops, Up to 750mm.

Regular price £150.00 GBP
Regular price Sale price £150.00 GBP
Sale Sold out
Shipping calculated at checkout.

The revolution in kitchen fitting has arrived !!

No more fiddling about measuring from the back of the worktop to line up your jig.

Use the front edge of your worktop to set up your jig using the SightLine technology for faster, more accurate Masons Mitre worktop joints.

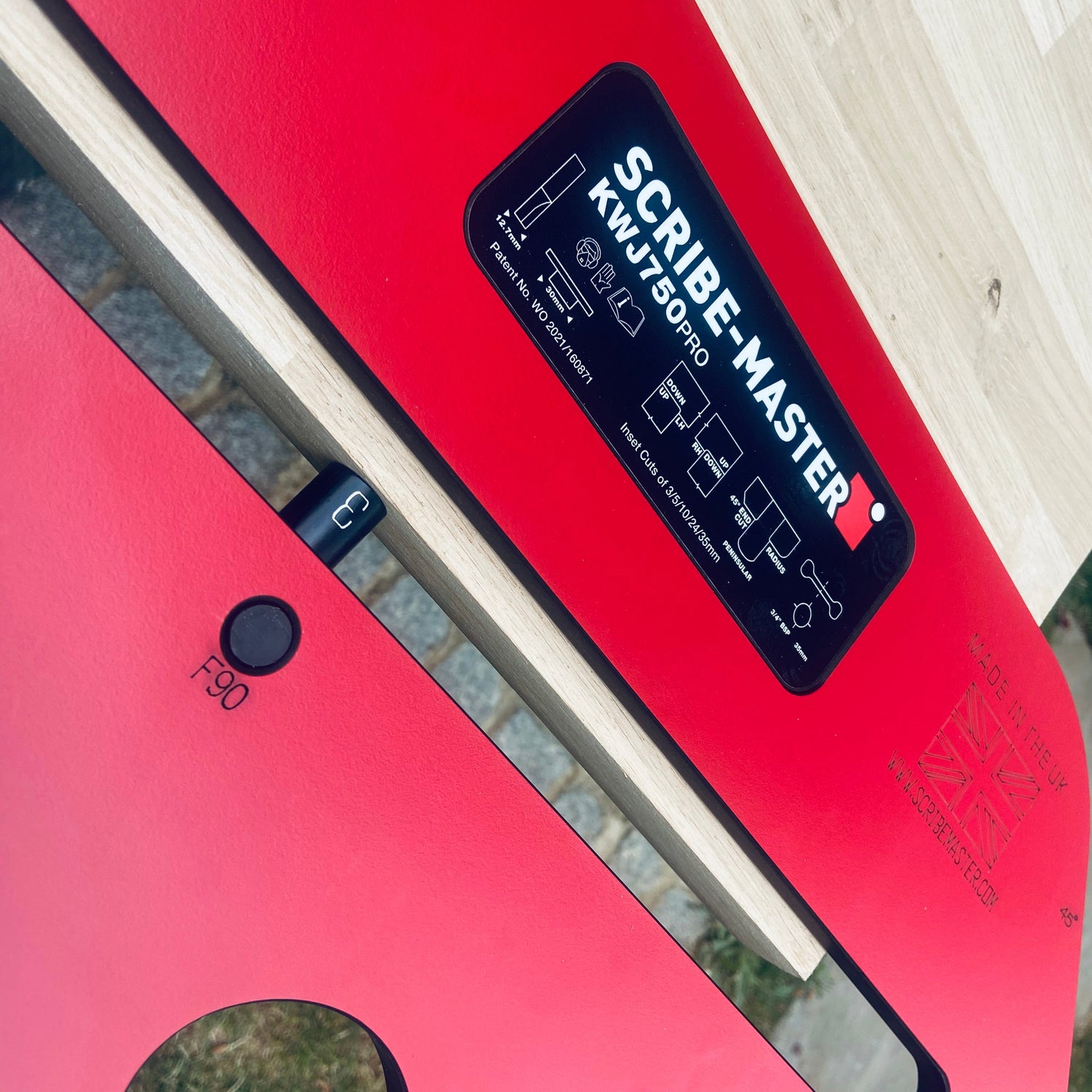

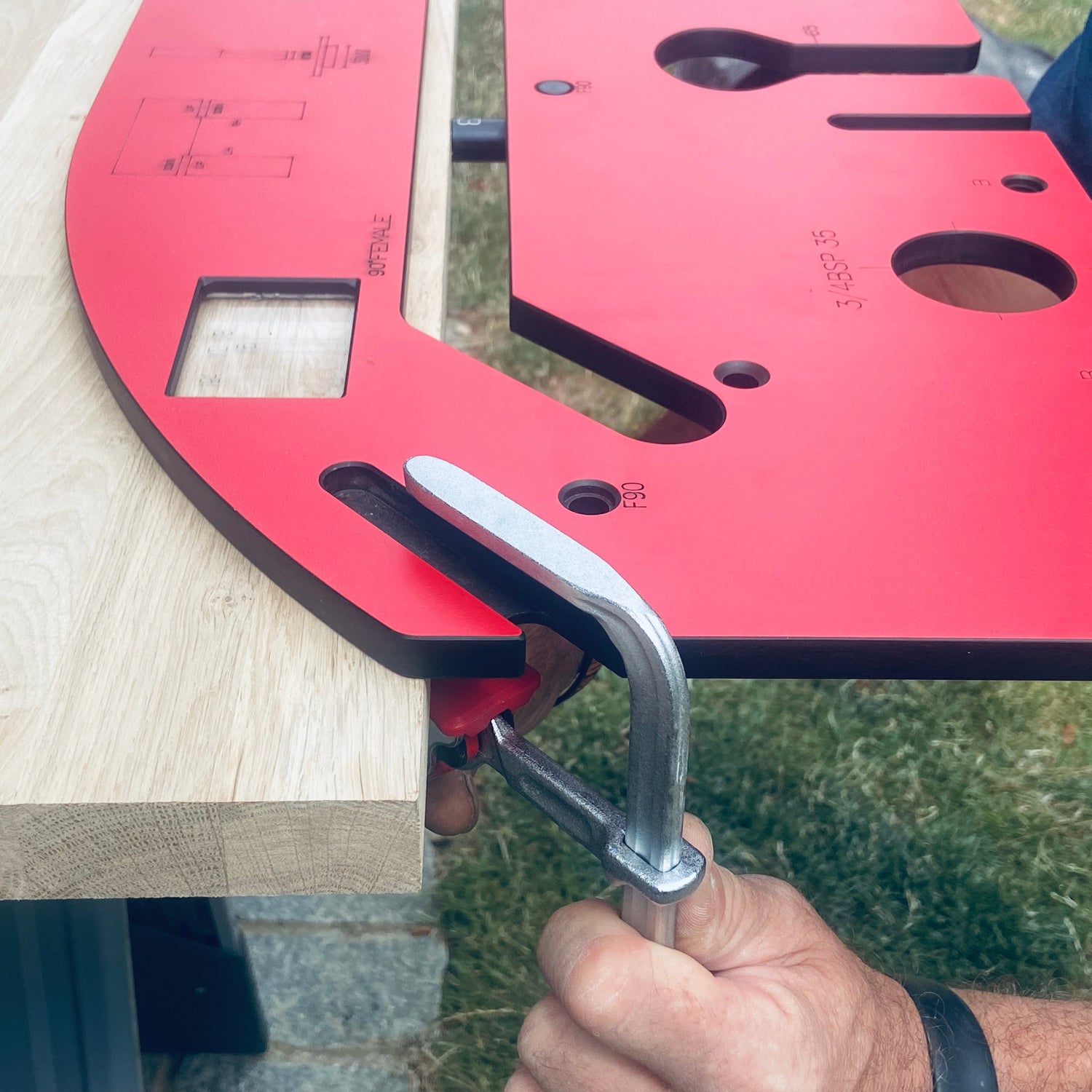

KWJ750PRO worktop Jig with Siteline Technology

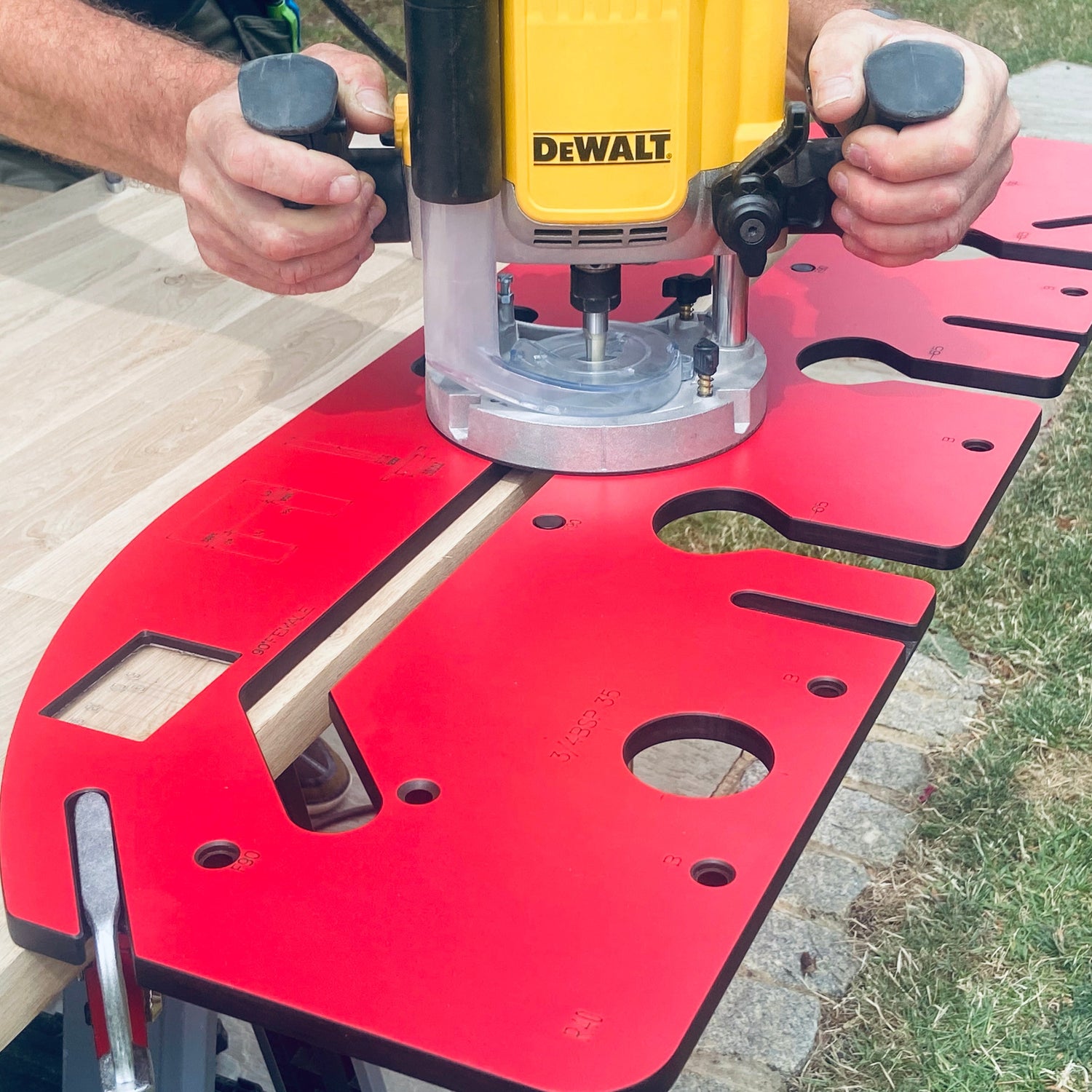

Simply mark your worktop with a small pencil line, insert the pins and use the 'SightLine' window, to set the jig and cut, Job Done !!

This Jig is Super easy to use making worktop cutting faster and more accurate.

Designed, manufactured & patented in the UK  by Scribemaster.

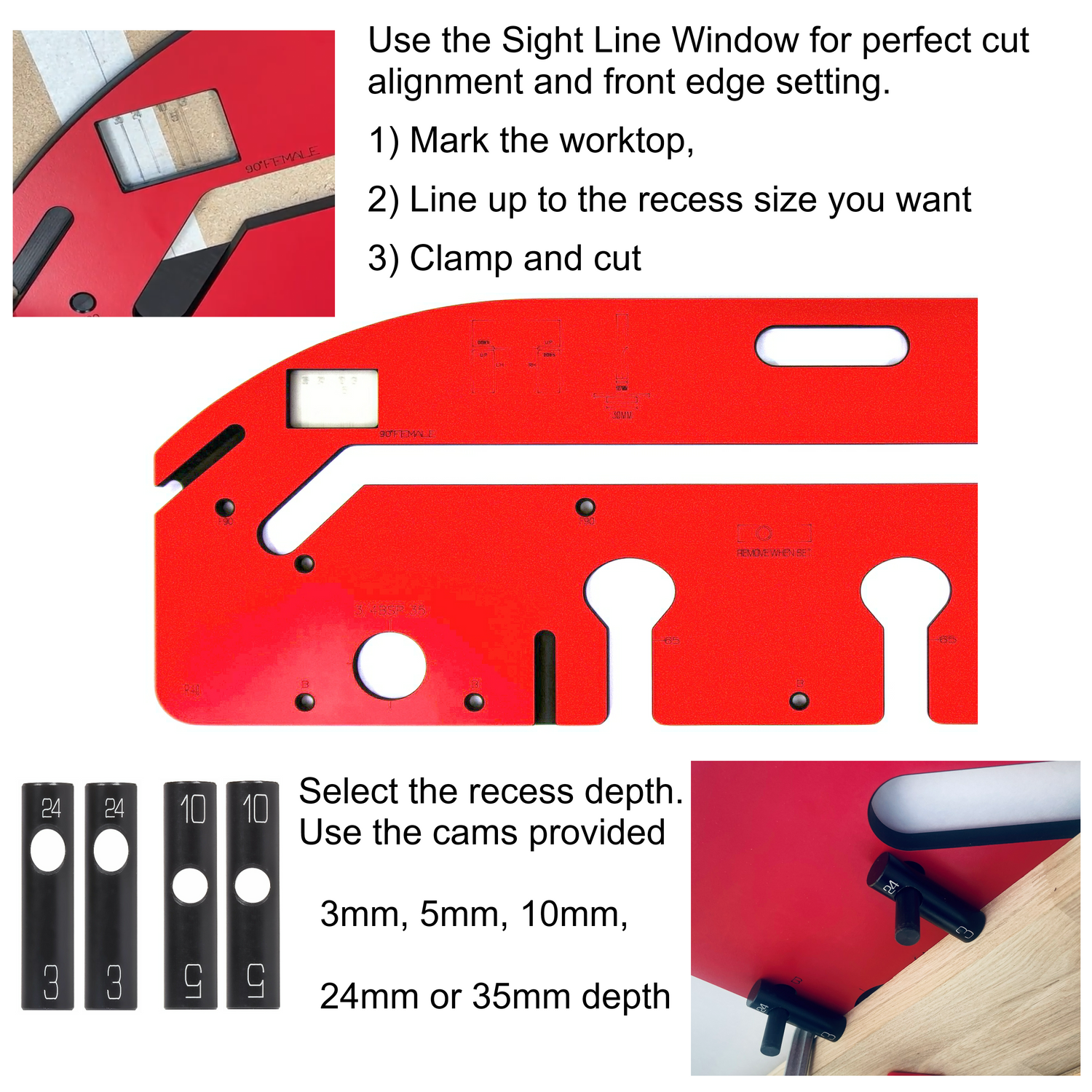

SightLine Window

  • Front Edge Setting using Patented SightLine Technolgy, this eliminates errors from scribing or non standard worktops.
  • Pegs in, line up using the SightLine window, clamp and cut, Job Done !!
  • Allows a flush edge to worktops when lining up with handless doors without extra marking.
  • Super fast operation, can cut both male and female Masons mitres in under 15 minutes.
  • Laser engraved markings for clear set up & front edge datum points.

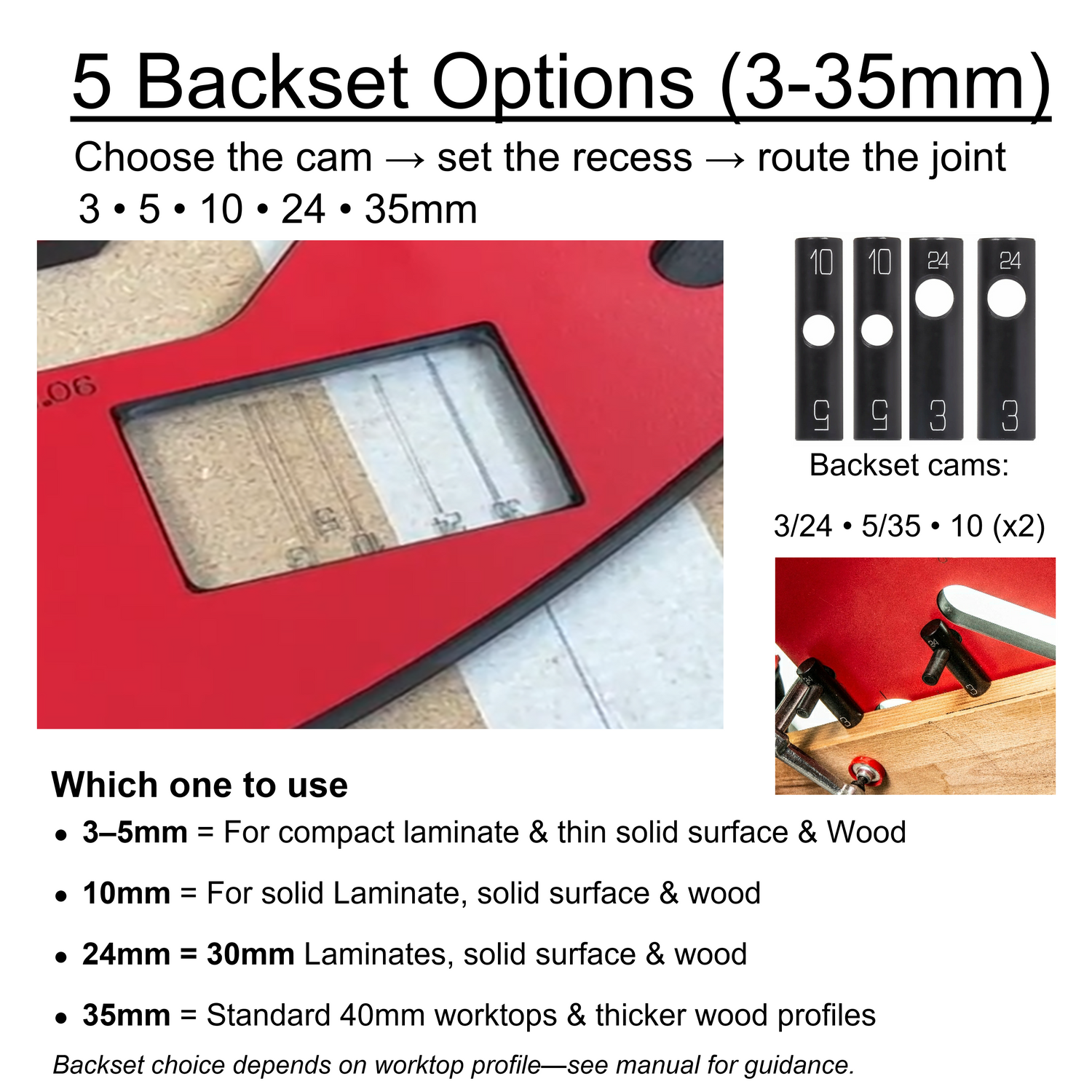

  • 5 x Inset options, using cams provided, for new style worktop materials & edge profiles can be used with conventional chipboard to polymer resin to compact laminates.

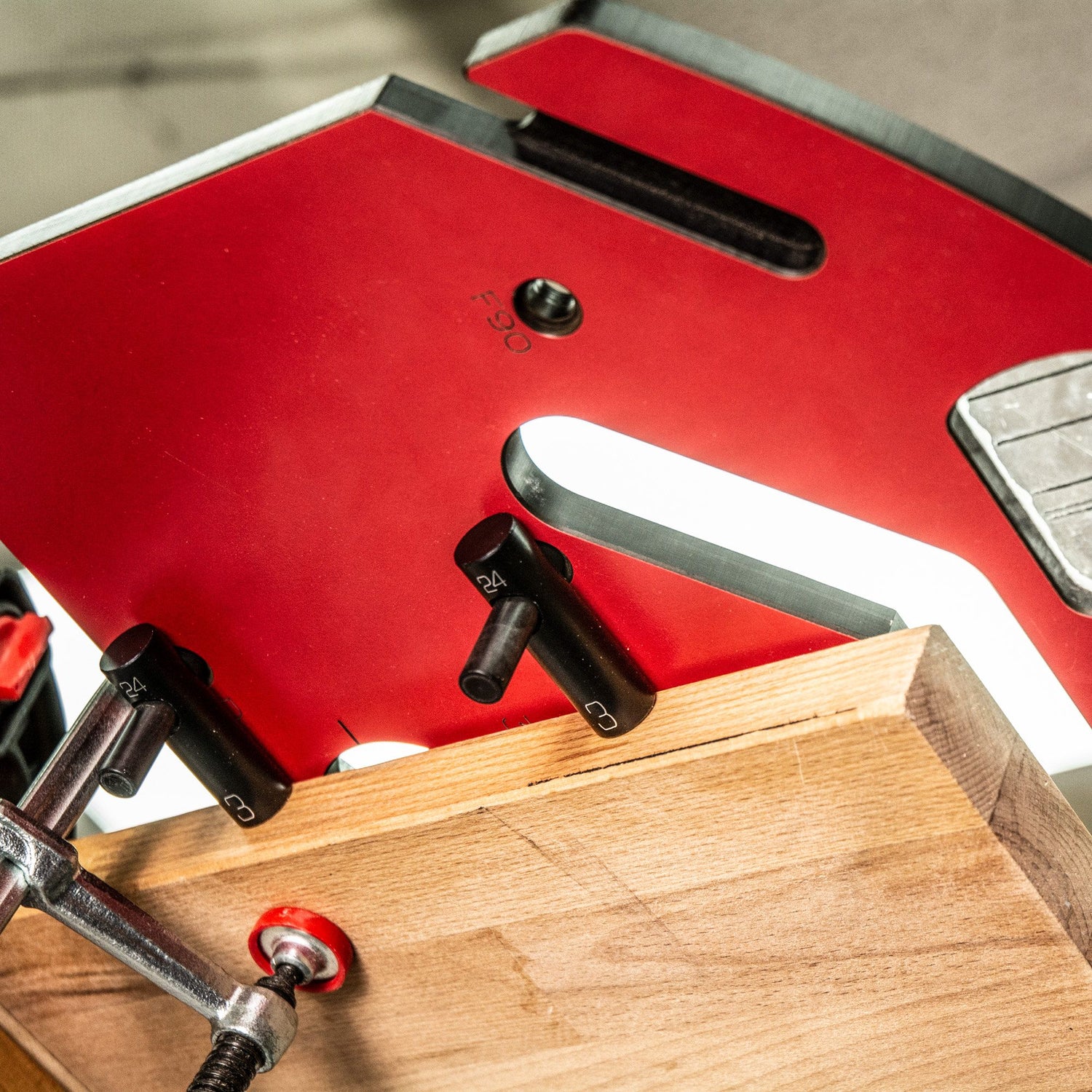

  • Unique design inset cylindrical cams for consistant fast setting.
  • Can be used on worktops from 150 to 750mm wide.
  • No packing of rear datum pegs if worktops are scribed.
  • Option to trim worktop ends by mm's using the M90 peg positions without changing cutters or guide bush saving time.
  • 3 'Dog Bone' apertures for speed when cutting bolt holes.
  • Adjustable 'Dog Bone' depths can be set using cams provided for differing lengths of bolts.
  • Recessed clamp slots to avoid router fouling.
  • CNC machined from High Pressure Laminate for durability and accuracy.
  • Designed, manufactured & Patented in the UK.





750Pro Worktop jig with usp's marked
